Notes | General: for contact inserts HC-B10, BB18, DD42, M, K8/24, HV03 also available as a powder-coated or color version: 1372656 HC-STA-B10-HHFD-1STM32-EL/... |
Product properties | Type: B10 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x M32 Housing type: Sleeve housing Cable outlet: lateral Pg screw connection: none |

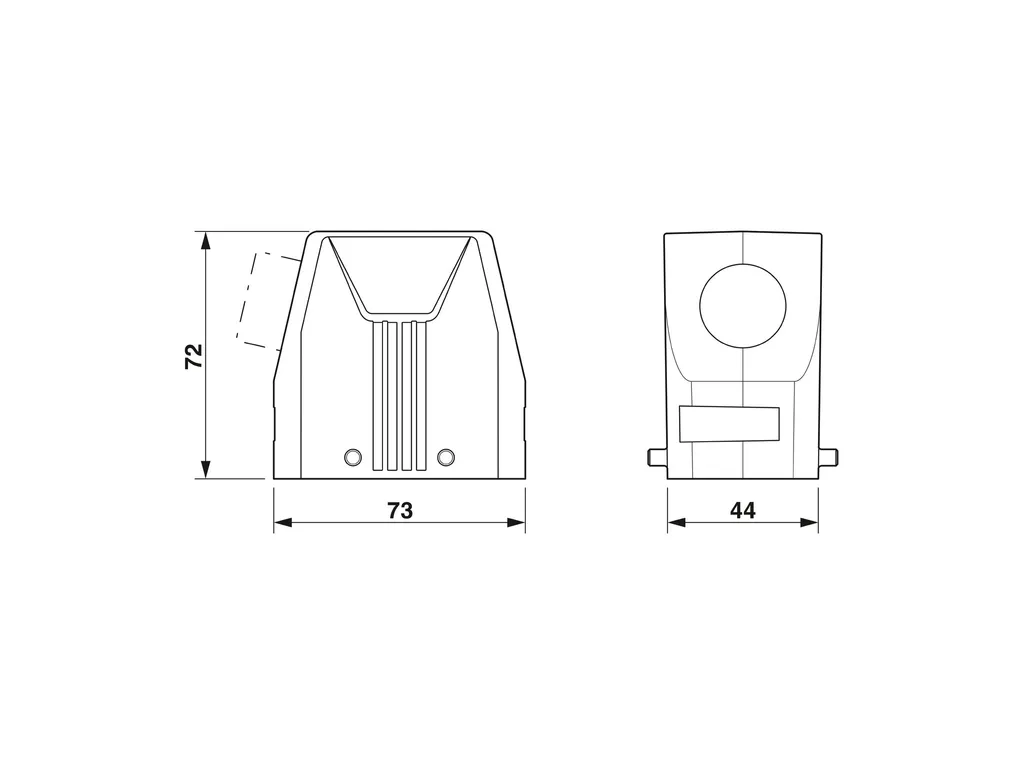

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/cf8dbd5c3dd49d43989962a79a441c4b/-S204x204-FJPG Width: 44 mm Height: 72 mm Length: 73 mm |
Material specifications | Housing surface material: uncoated Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
Mechanical properties | Mechanical data Type of the screw connection: 1x M32 Locking type: Pin |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
