| Notes | General: for contact inserts HC-B10, BB18, DD42, M, K8/24, HV03 also available as a powder-coated or color version: 1372758 HC-STA-B10-HLWD-1STM20-EL/... |

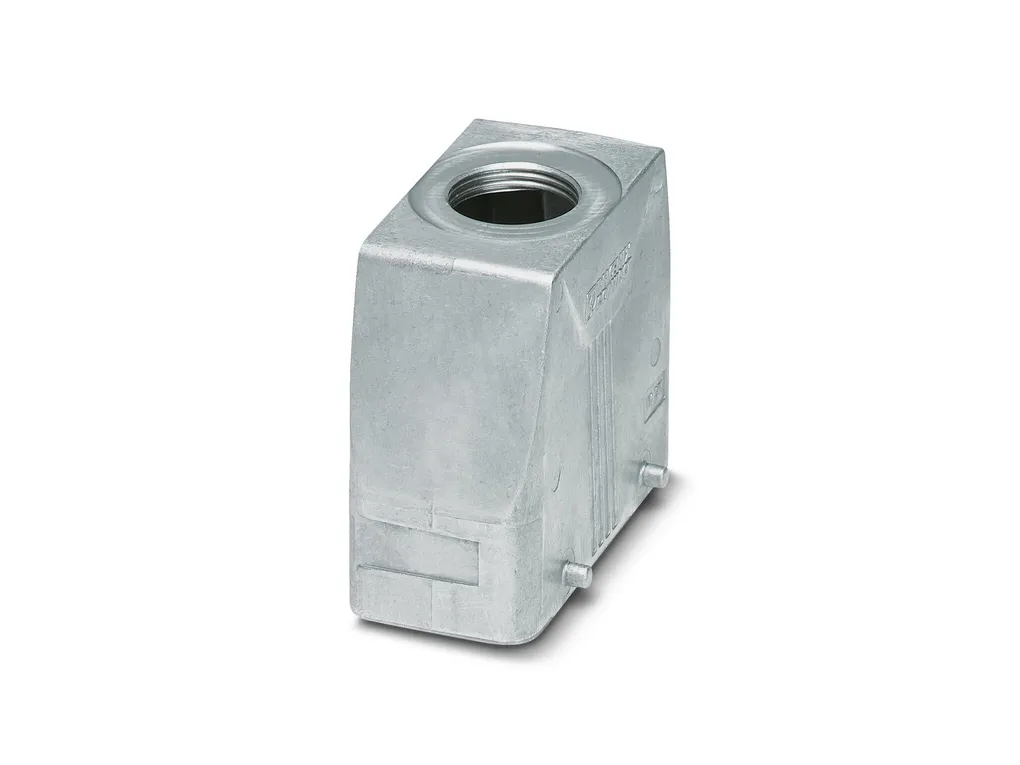

| Product properties | Type: B10 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x M20 Housing type: Sleeve housing Cable outlet: lateral Pg screw connection: none |

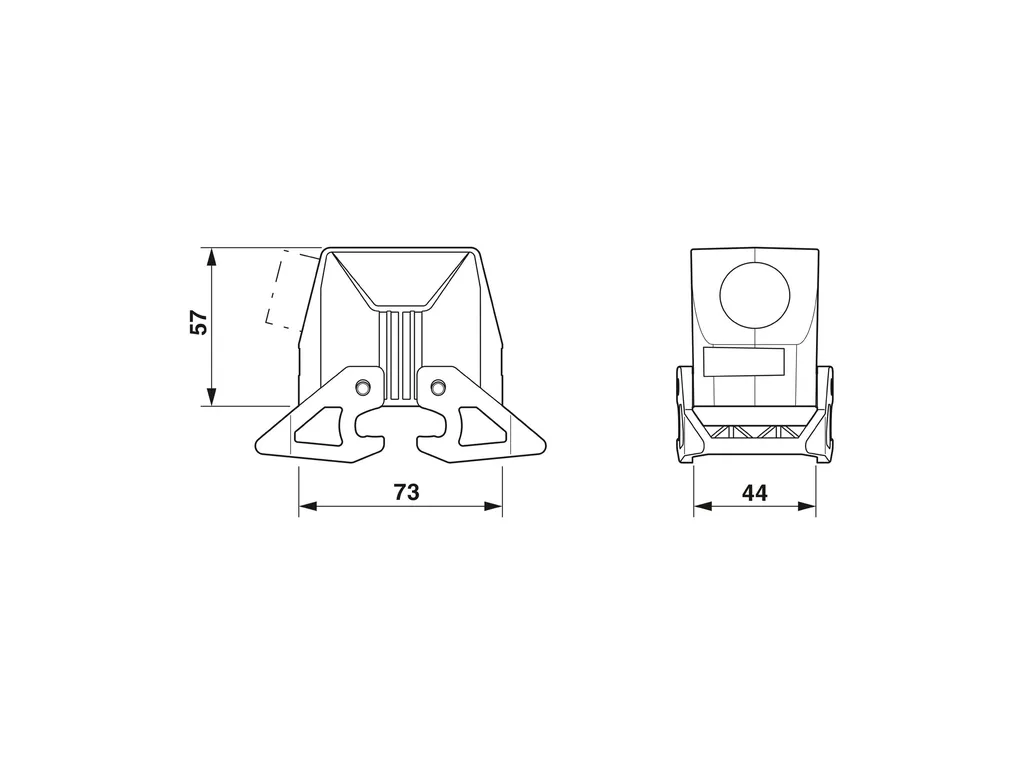

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1111644ceb31774bac404df7ad804d8c/-S204x204-FJPG Width: 44 mm Height: 57 mm Length: 73 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Housing surface material: uncoated Locking latch material: PA Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x M20 Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
