HC-STA-B16-HHWD-1TTP21-EL-AL - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K also available as a powder-coated or color version: 1373023 HC-STA-B16-HHWD-1TTP21-EL/... |
Product properties | Type: B16 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x Pg21 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |

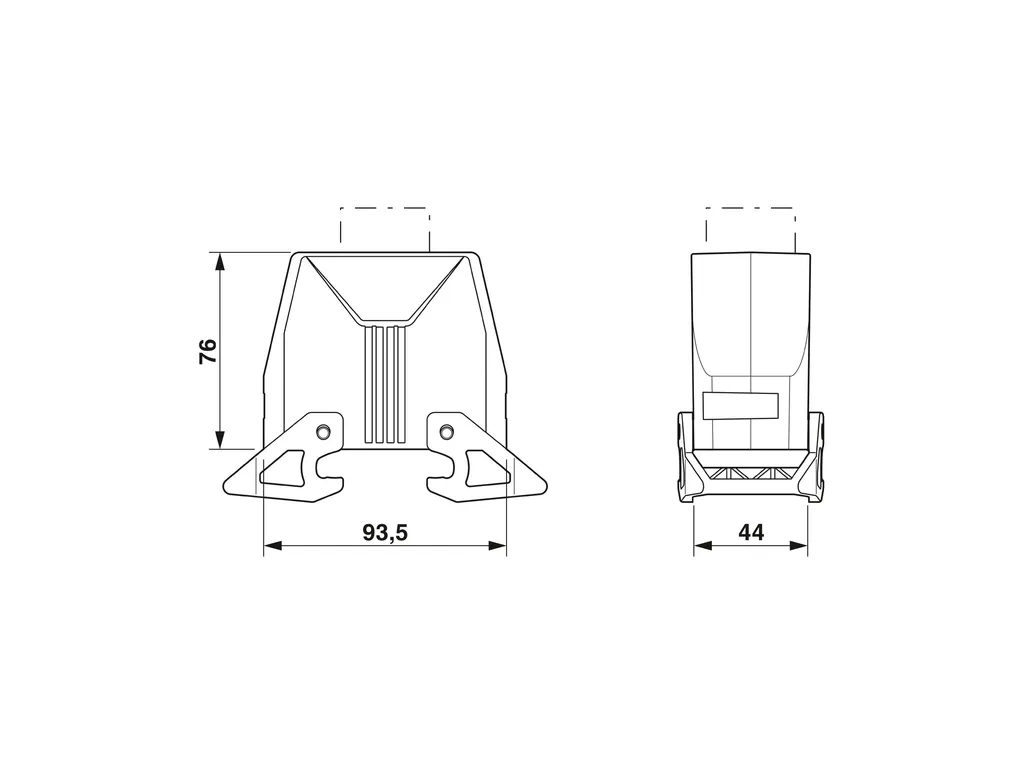

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/bc29354ebafbed4f9f4f65a84b8aca1e/-S204x204-FJPG Width: 44 mm Height: 76 mm Length: 93.5 mm |
Material specifications | Flammability rating according to UL 94: V0 (Interlock) Housing surface material: uncoated Locking latch material: PA Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
Mechanical properties | Mechanical data Type of the screw connection: 1x Pg21 Locking type: Latch |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
