| Notes | General: for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M also available as a powder-coated or color version: 1373237 HC-STA-B24-HHWD-1STM32-EL/... |

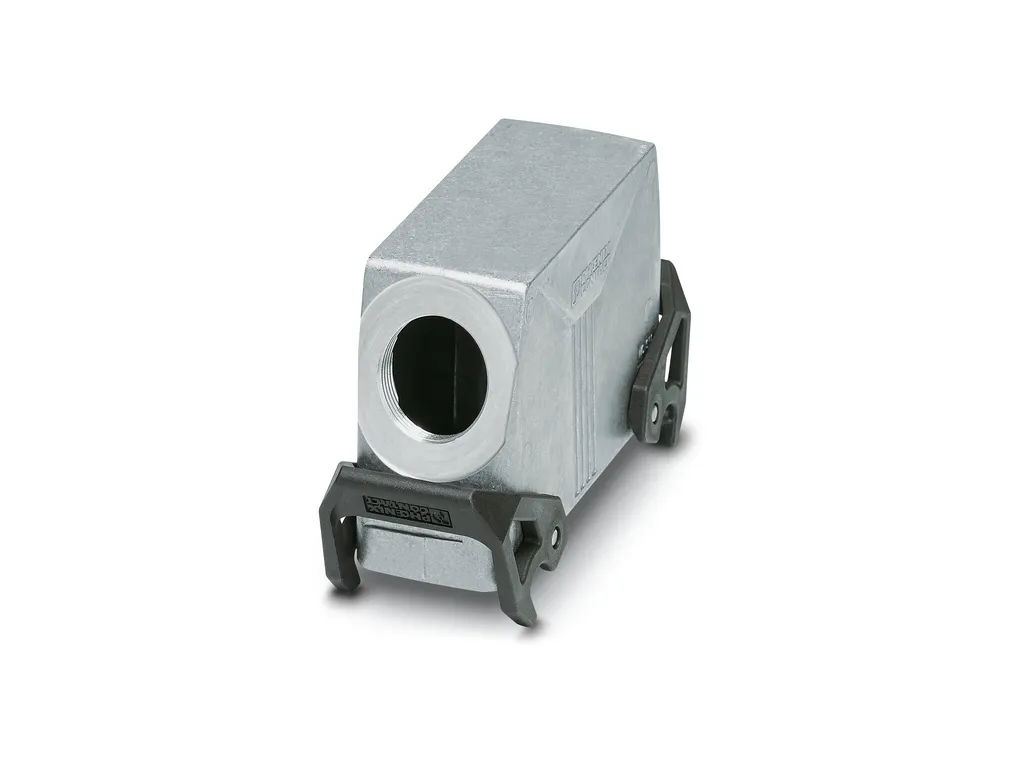

| Product properties | Type: B24 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: 1x M32 Housing type: Sleeve housing Cable outlet: lateral Pg screw connection: none |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1f386d8caecf1d43aeb2882da0e7efa8/-S204x204-FJPG Width: 44 mm Height: 76 mm Length: 120 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) Housing surface material: uncoated Locking latch material: PA Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Type of the screw connection: 1x M32 Locking type: Latch |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
