Notes | General: for contact inserts HC-B24, BB46, D64, DD108, HV10/16, M also available as a powder-coated or color version: 1372672 HC-STA-B24-SLWD-2SSM25-EL/.../... |
Product properties | Type: B24 Product type: Housing with locking latch Application: Standard No. of cable outlets: 2 Type of the screw connection: 2x M25 Housing type: Box mounting bases Cable outlet: lateral Pg screw connection: none |

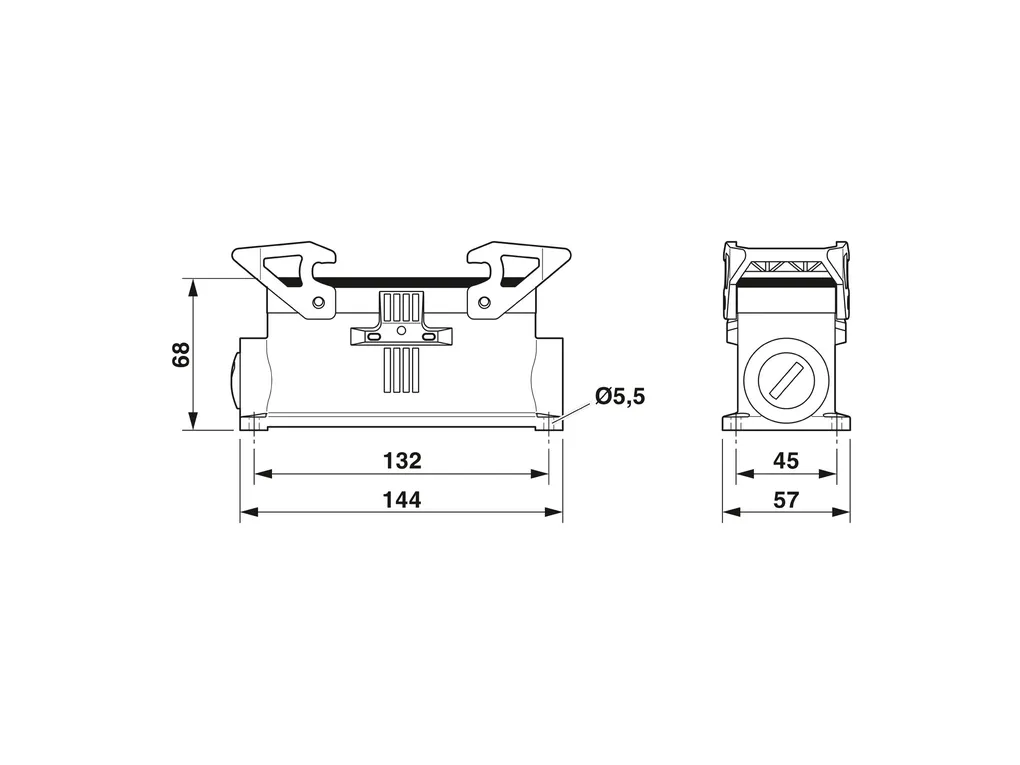

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/733a042e0404114e8a0beee235809c7c/-S204x204-FJPG Width: 57 mm Height: 68 mm Length: 144 mm Hole diameter: 5.5 mm |
Material specifications | Flammability rating according to UL 94: V0 (Interlock) Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: PA Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
Mechanical properties | Mechanical data Type of the screw connection: 2x M25 Locking type: Latch |
Mounting | Assembly instructions: One opening is sealed with a plastic filler plug and can be opened using a screwdriver. |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
