1413929 PHOENIX CONTACT - Technology Bsa

SACB-4/T-L-8FUSE CT AXL - Power distributor

Power distributor, application: Power supply, connection method: M12 socket Metal, number of slots: 4, number of positions: 4, coding: T, slot assignment: single, status display: Yes, Universal; master cable connection: Plug-in master cable connection 90°, shielding: no

Product Code: 1413929

Partner cod.: 1413929

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 4 Application: Power supply Number of slots: 4 Coding: T
Material specifications	Material: Die-cast zinc PBT PUR Flammability rating according to UL 94: V0 Seal material: Viton NBR Contact material: Cu alloy Contact surface material: pre-nickel plated, gold-plated Contact carrier material: PA Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PC Material of contact surface, master cable side: Silver-plated
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8e0c023f4e3ada4cbd30e7afd2edd10b/-S204x204-FJPG Width: 60 mm Height: 52 mm Length: 212 mm
Connection data	Conductor connection Connection method: Plug-in master cable connection Conductor cross section Flexible power supply: 2.5 mm² ... 6 mm² Connection cross section AWG Flexible power supply: 14 ... 10 Tightening torque, cover screw: 0.6 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm
Signaling	Status display present: Yes

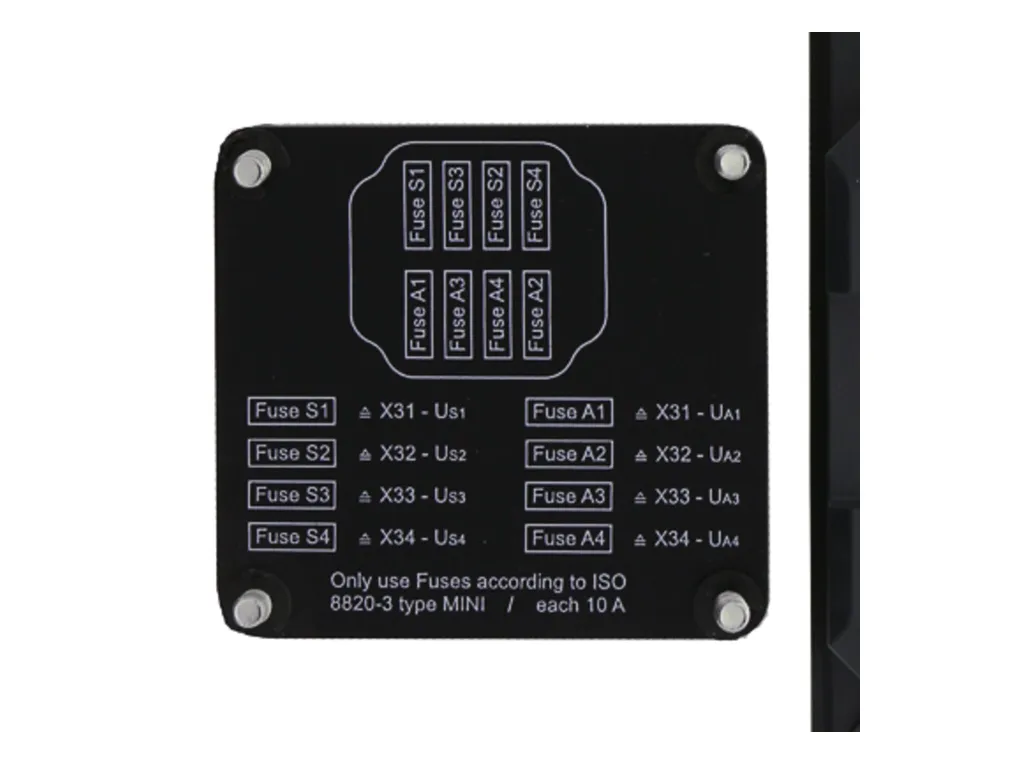

Electrical properties	Max. operating voltage U_max: 30.5 VDC Local diagnostics: Supply voltage per module Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VDC Rated current, total: 70 A (at 40°C, observe the distribution of the current paths under load) Protective circuit: Overload protection for the outputs; Fuse in header Max. current carrying capacity per path: 10 A Current carrying capacity per slot: 2x 9.25 A (at 40°C)
Cable/line	Sensor/actuator connection system: M12 socket Connection method: Plug-in master cable connection External cable diameter: 9 mm ... 15.5 mm Tightening torque, cover screw: 0.6 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque, union nut: 5 Nm
Standards and regulations	Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-111 EN60068-2-6 EN60068-2-27 EN60068-2-64
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP67 Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -25°C ... 80°C
