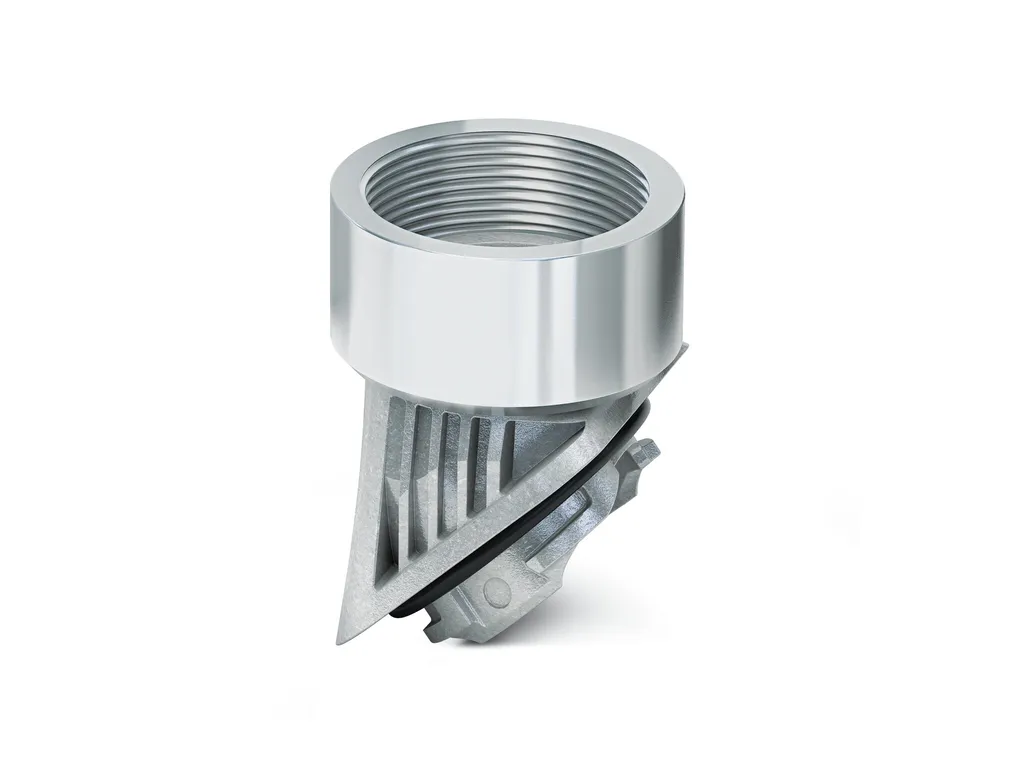

Product properties | Product type: Thread adapter Application: Bayonet B - metric Type of the screw connection: M20 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f9106ee0ea03cd4bb4c1be9a48df0faa/-S204x204-FJPG Thread type on seal side: M20 Internal dimensions Length of internal thread: 13 mm |
Material specifications | Color: aluminum Material: Die-cast aluminum, corrosion-resistant Seal material O-ring: NBR Housing material: Die-cast aluminum, corrosion resistant |
Mechanical properties | Mechanical data Type of the screw connection: M20 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121400 |
