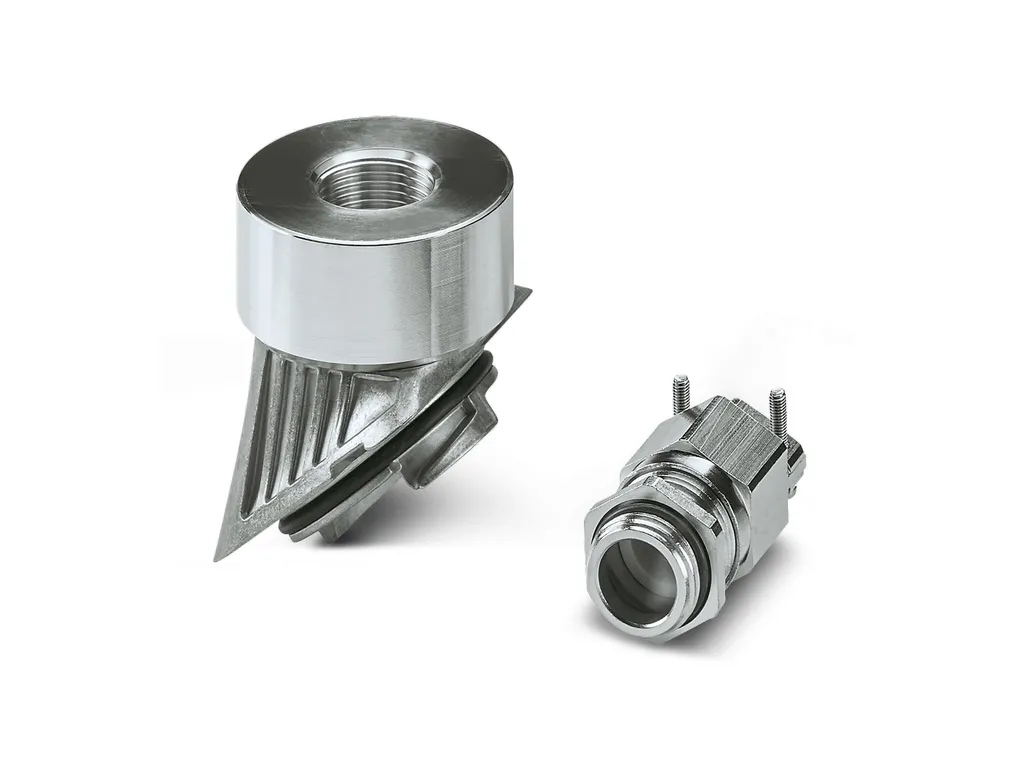

| Product properties | Product type: Thread adapter Application: Bayonet B - metric Type of the screw connection: M25 |

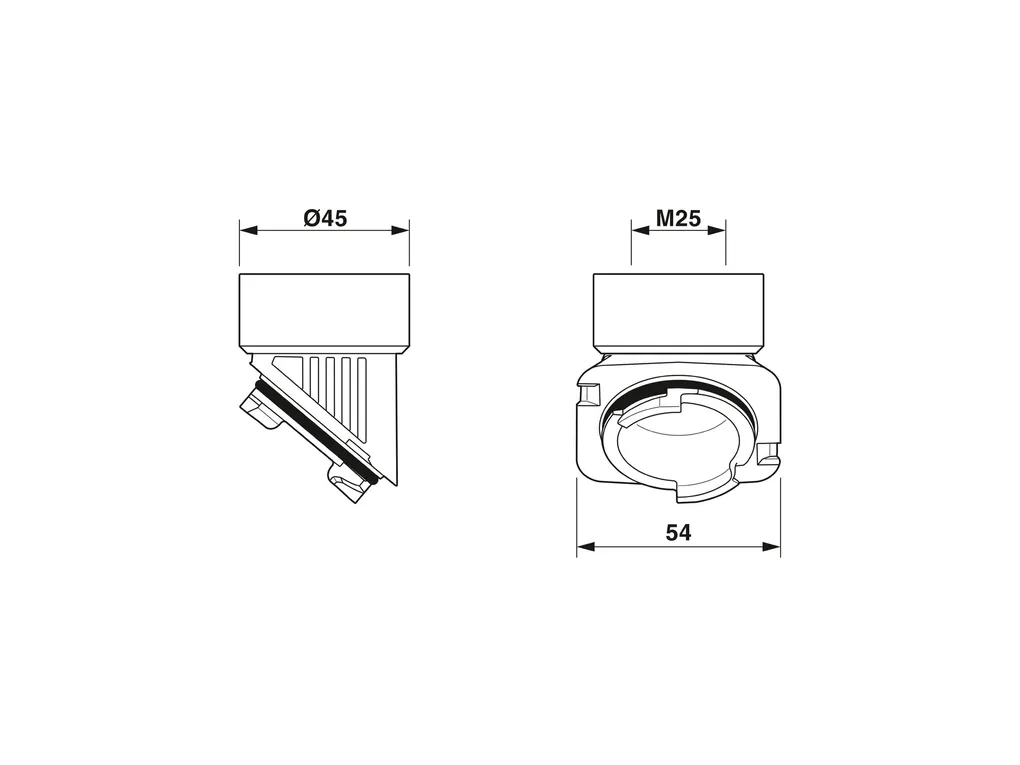

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d61db45c511beb46914d1d4d92f07265/-S204x204-FJPG Thread type on seal side: M25 Internal dimensions Length of internal thread: 13 mm |
| Material specifications | Color: aluminum Material: Die-cast aluminum, corrosion-resistant Seal material O-ring: NBR Housing material: Die-cast aluminum, corrosion resistant |
| Cable/line | External cable diameter: depending on the cable gland |
| Mechanical properties | Mechanical data Type of the screw connection: M25 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Ambient temperature (operation): -40°C ... 125°C |
| ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
| ETIM | ETIM 9.0: EC000441 |
| UNSPSC | UNSPSC 21.0: 39121400 |
