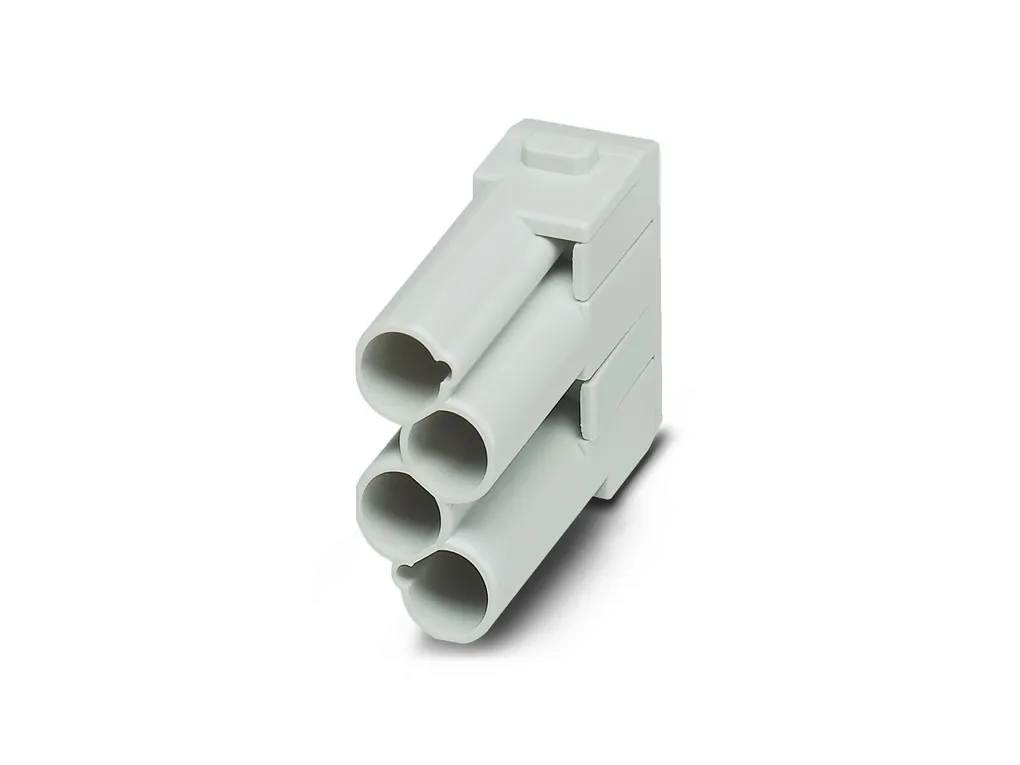

HC-M-04-CT-M - Contact insert module
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)

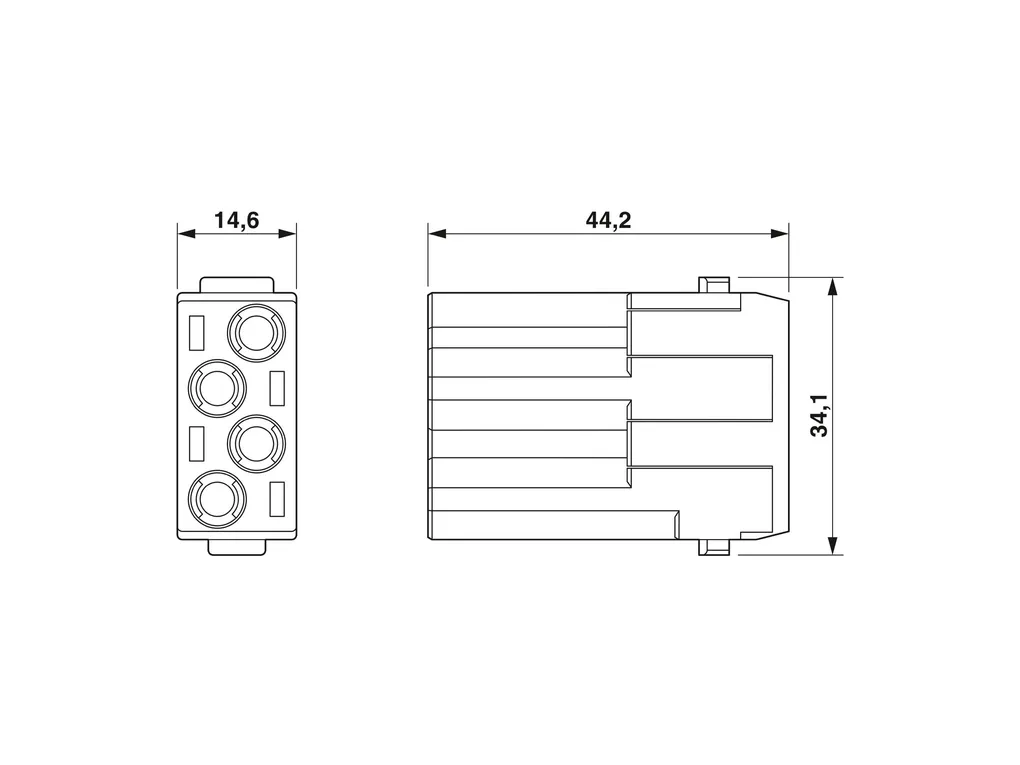

Notes | General: For HEAVYCON HC-B6 to B48 housing, HC-M-B...-MF-... module carrier frame required, crimp connection, crimp contacts not supplied as standard. Connectors may be operated only when there is no load/voltage. |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required The module cannot be used simultaneously with the HC-B..-TMB-SD-IP65 and HC-B..-TMS-SD-IP65 protective covers. |
Product properties | Product type: Modular contact insert Number of positions: 4 Connection profile: 4 Contact numbering: 1 - 4 Application: Power Number of module slots: 1 No. of power contacts: 4 No. of control contacts: 0 Contact material type: turned Series: HC-M-04 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Connection data | Connection technology Connection technology: Crimp connection Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 1.5 mm² ... 6 mm² Connection cross section AWG: 16 ... 10 Stripping length of the individual wire: 9 mm (9.6 mm (4-6 mm²)) 14 mm (4...6mm²) |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3754b676800bb94482d47c15ee9134e9/-S204x204-FJPG Width: 34.2 mm Height: 44.6 mm Length: 14.6 mm Mechanical characteristics Minimum housing height: 52 mm Contact diameter: 4 mm |
Electrical properties | Rated voltage (III/2) contacts: 1000 V Rated voltage (III/3): 690 V Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated surge voltage: 6 kV Rated current: 40 A |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 500 |
Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
Standards and regulations | Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
ECLASS | ECLASS-11.0: 27440217 ECLASS-12.0: 27440217 ECLASS-13.0: 27440217 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121400 |
