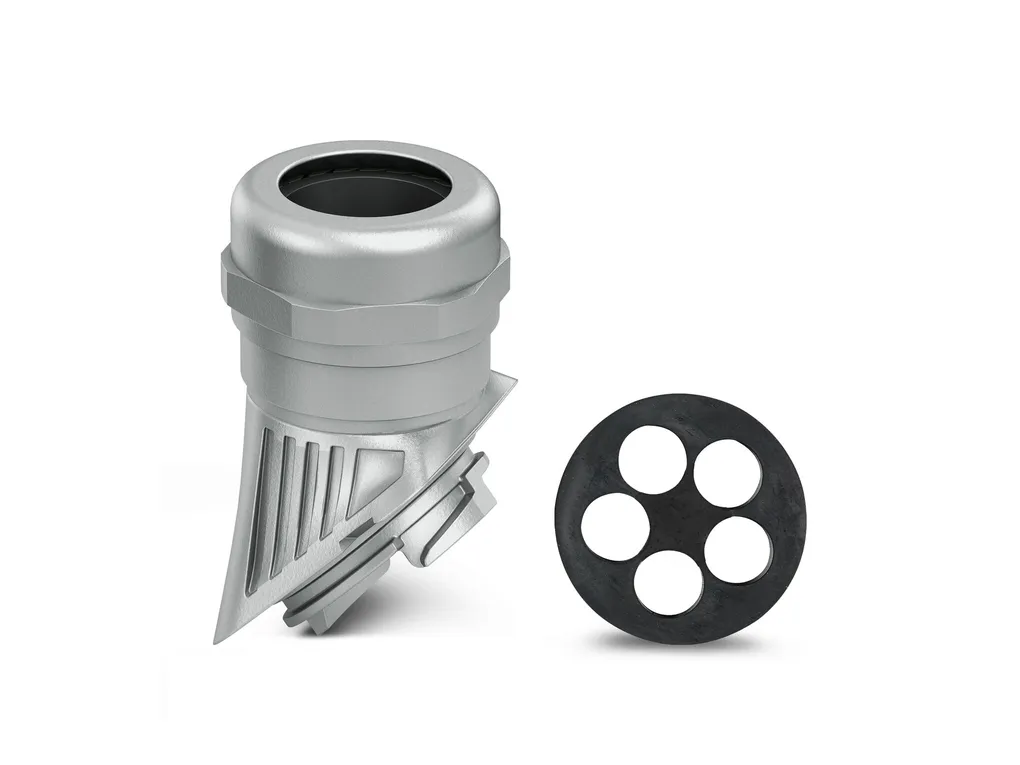

HC-B-GM0-M40-ET-AL - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Cable gland with bayonet locking Type of the screw connection: M40 Shielded: no Execution of the strain relief: B |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/206c4c3d2563c34caae7c55e3c9c9ca7/-S204x204-FJPG Wrench size, union nut: 43 mm Thread pitch: 1.5 mm Thread type on seal side: M40 |
Material specifications | Color: aluminum Material: Brass Material for screw connection: Aluminum Housing material: Die-cast aluminum, corrosion resistant |
Cable/line | External cable diameter (Cable 1): 1 mm ... 26 mm (variable) Tightening torque, union nut: 10.00 Nm |
Mechanical properties | Mechanical data Type of the screw connection: M40 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Ambient temperature (operation): -30°C ... 100°C |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
