| Product properties | Product type: Cable gland with bayonet locking No. of conductors: 1 Type of the screw connection: M32 Type: with bend protection sleeve Shielded: no |

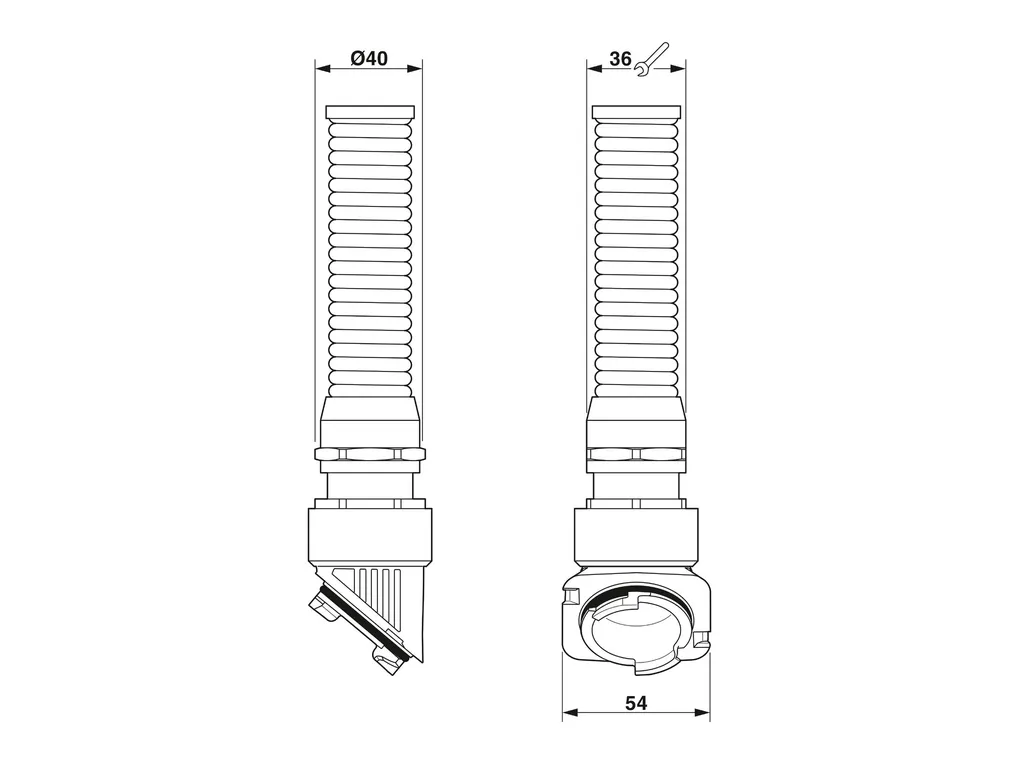

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/54d287d08485d8438959b1183ed13f87/-S204x204-FJPG Wrench size, union nut: 36 mm Wrench size, support: 36 mm |
| Material specifications | Color: Brass Material: Brass, nickel-plated Seal material: EPDM Seal material O-ring: NBR Material for screw connection: Brass, nickel-plated |
| Cable/line | External cable diameter (Cable 1): 13 mm ... 21 mm Tightening torque, union nut: 10.00 Nm |
| Mechanical properties | Mechanical data Type of the screw connection: M32 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Ambient temperature (operation): -40°C ... 100°C |
| ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
| ETIM | ETIM 9.0: EC000441 |
| UNSPSC | UNSPSC 21.0: 39121300 |
