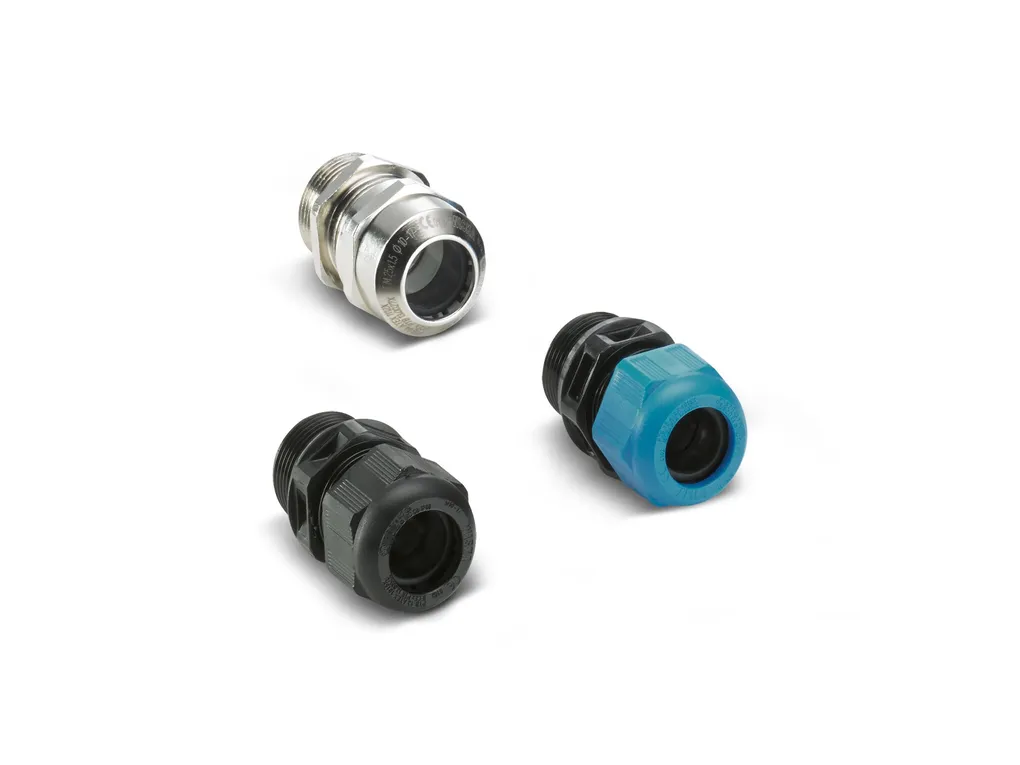

Product properties | Product type: Full screw connection Application: Ex No. of conductors: 1 Manufacturer: WISKA Manufacturer Designation: EMSKE-L 20 Shielded: no |
Ex data | Cable types that can be used: for unarmored cables Suited for EX-applications: yes |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f5f57417ba976d4fbd39ab72cd7546f7/-S204x204-FJPG Length: 43 mm Length of the connecting thread: 12 mm Hole diameter: 20.1 mm ... 20.3 mm Wrench size, union nut: 24 mm Wrench size, support: 24 mm Hexagon angular dimension: 27 mm Thread type connection side: M20 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 8 Nm (Support sleeve) |
Material specifications | Color: Brass Material: PA Seal material Cable seal: EPDM Material for screw connection: Brass, nickel-plated |
Cable/line | External cable diameter (): 6 mm ... 13 mm Tightening torque, union nut: 8.00 Nm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5bar / 0.5h) Ambient temperature (operation): -40°C ... 75°C (static) |
Approvals | ATEX: II 2 G/D EEx e II IP68 IECEx: Ex e IIC Gb, Ex tb IIIC Db |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
