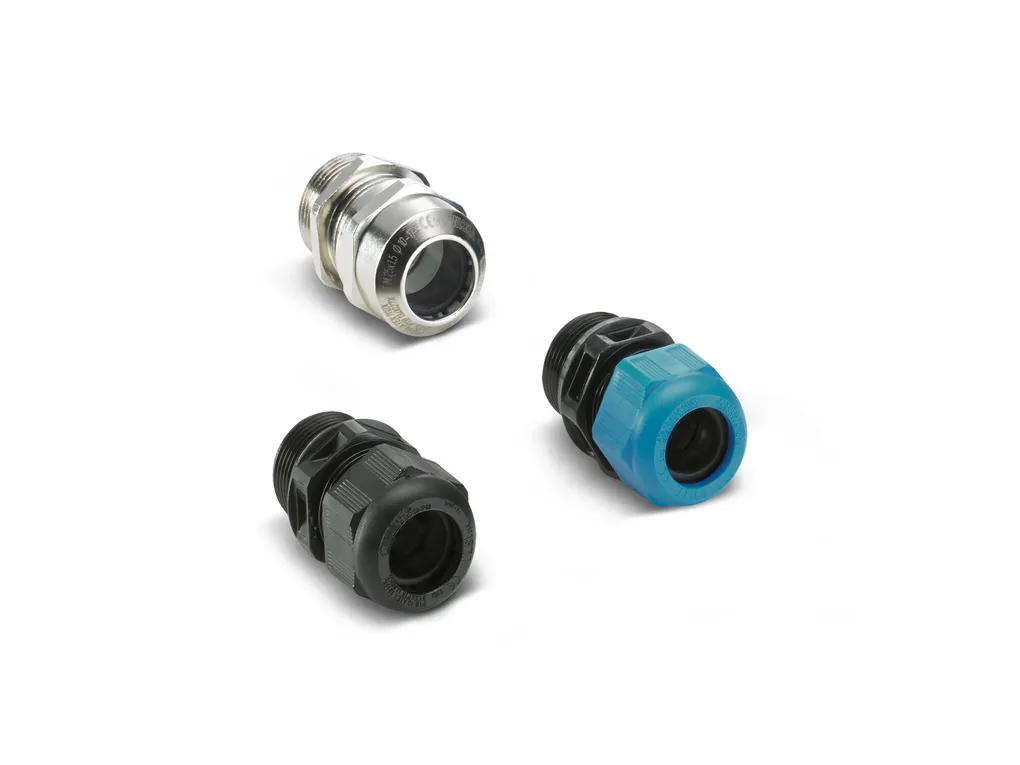

G-ESIS-M50-L68L-NEPDS-S - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Full screw connection Application: Ex No. of conductors: 1 Manufacturer: WISKA Manufacturer Designation: EMSKE-L 50 Shielded: no |
Ex data | Cable types that can be used: for unarmored cables Suited for EX-applications: yes |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/eefaecb9e9eb7f40b6f1e774707e9b4e/-S204x204-FJPG Length: 57 mm Length of the connecting thread: 15 mm Hole diameter: 50.1 mm ... 50.3 mm Wrench size, union nut: 55 mm Wrench size, support: 55 mm Hexagon angular dimension: 61 mm Thread type connection side: M50 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 30 Nm (Support sleeve) |
Material specifications | Color: Brass Material: PA Seal material Cable seal: EPDM Material for screw connection: Brass, nickel-plated |
Cable/line | External cable diameter (): 21 mm ... 35 mm Tightening torque, union nut: 30.00 Nm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5bar / 0.5h) Ambient temperature (operation): -40°C ... 75°C (static) |
Approvals | ATEX: II 2 G/D EEx e II IP68 IECEx: Ex e IIC Gb, Ex tb IIIC Db |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
