G-INB-M12-S68N-PEPDS-BK - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Full screw connection No. of conductors: 1 Type: with bend protection sleeve Manufacturer: WISKA Manufacturer Designation: ESKVS 12 Shielded: no Execution of the strain relief: A |
Characteristics | Category of shock impact: 2 Design, Strain relief: A |

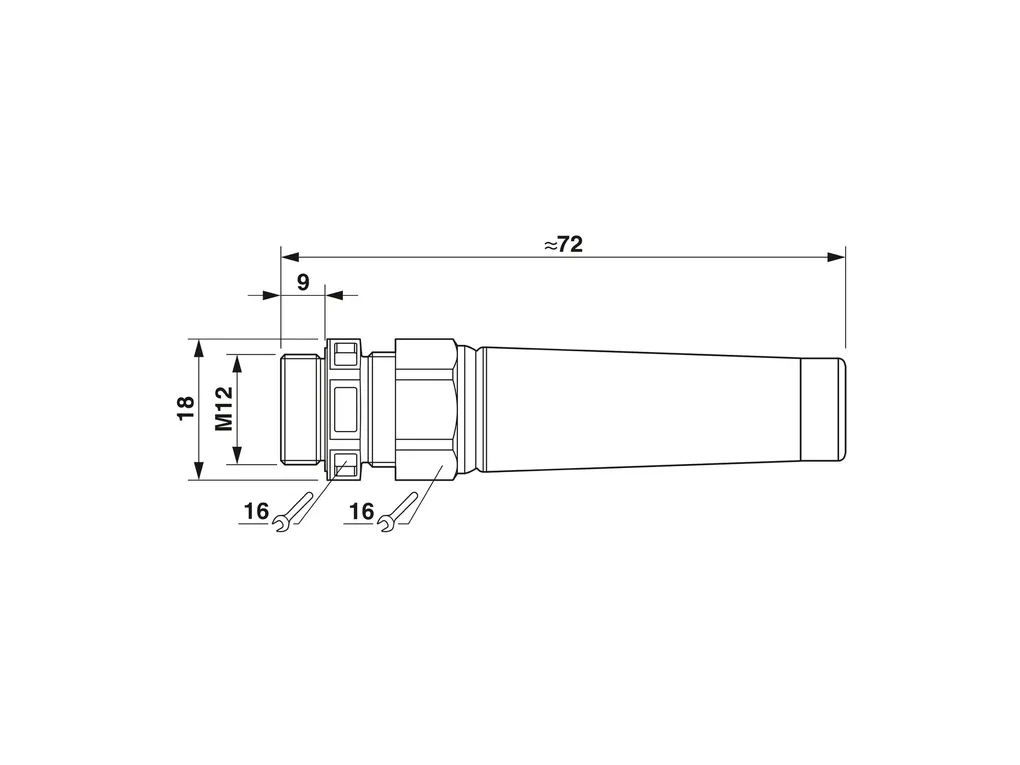

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1549fa94acbb484a9fdffaf72354ad93/-S204x204-FJPG Length: 72 mm Length of the connecting thread: 9 mm Hole diameter: 12.1 mm ... 12.2 mm Wrench size, union nut: 16 mm Wrench size, support: 16 mm Hexagon angular dimension: 18 mm Thread type connection side: M12 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 2 Nm (Union nut: EN 62444) 2 Nm (Support: EN 62444) |
Material specifications | Material: PA Seal material: EPDM Glow wire ignition temperature GWIT according to EN60695-2-13: 750 Material for screw connection: PA |
Cable/line | External cable diameter (Cable 1): 3 mm ... 7 mm External cable diameter (): 4.1 mm ... 6 mm (for UL 514 B) Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (5bar / 0.5h) IP69 (DINEN60529 / IEC 60529) Ambient temperature (operation): -40°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
