G-INTRO-M20-S68N-PEPDS-BK - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Full screw connection No. of conductors: 1 Type: with external strain relief Manufacturer: WISKA Manufacturer Designation: ESKVZ 20 Shielded: no Execution of the strain relief: B |
Characteristics | Category of shock impact: 2 Design, Strain relief: B |

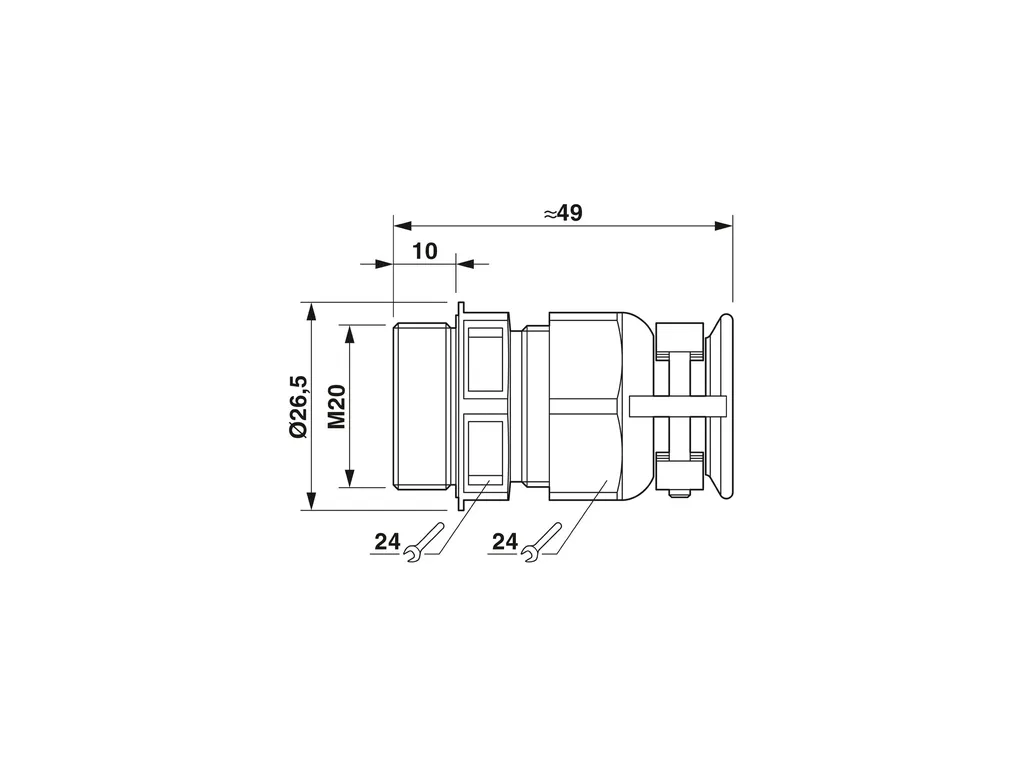

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7b0d0fa48b74874c8343b09f2b661cb2/-S204x204-FJPG Length: 49 mm Length of the connecting thread: 10 mm Length without connecting thread: 39 mm Hole diameter: 20.1 mm ... 20.2 mm Wrench size, union nut: 24 mm Wrench size, support: 24 mm Clamping range of the strain relief clip: 6.00 mm ... 13.00 mm Hexagon angular dimension: 27 mm Thread type connection side: M20 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 4 Nm (Union nut: EN 62444) 4 Nm (Support: EN 62444) 0.5 Nm (Screw for clip) |
Material specifications | Material: PA Seal material Cable seal: EPDM Glow wire ignition temperature GWIT according to EN60695-2-13: 750 Material for screw connection: PA |
Cable/line | External cable diameter (Cable 1): 6 mm ... 13 mm External cable diameter (): 7.5 mm ... 11.3 mm (for UL 514 B) Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (5bar / 0.5h) IP69 (DINEN60529 / IEC 60529) Ambient temperature (operation): -40°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
