PHOENIX CONTACT 1415213
PHOENIX CONTACTNot available

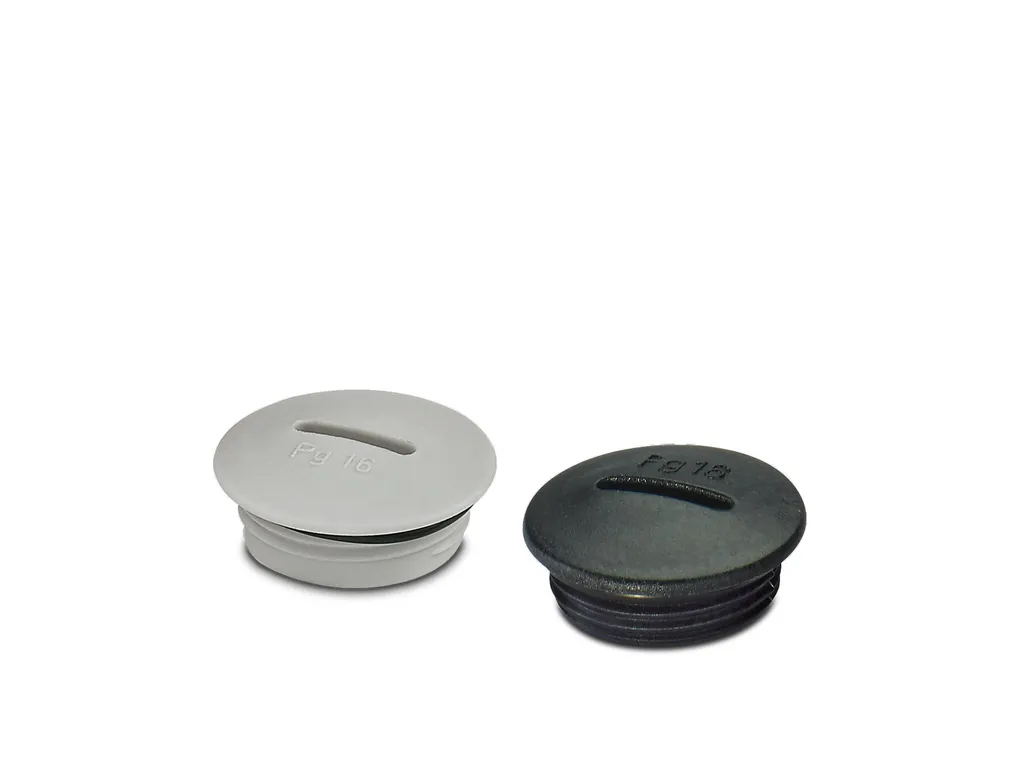

A-INSP-PG16-65N-P-BK - Screw plug

Screw plug, material for screw connection: PA, connecting thread: Pg16, color: jet black RAL 9005, with O-ring
Product Code: 1415213
Partner cod.: 1415213
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesProduct type: Plug for cable screw gland
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e5caeb6b944cdb4ea438122e2df50b8f/-S204x204-FJPG
Length: 9.5 mm
Length of the connecting thread: 6 mm
Diameter: 22.5 mm
27 mm
27 mm
Connecting thread diameter: 22.5 mm
Hexagon angular dimension: Diameter
Thread type connection side: Pg16
Material specificationsMaterial: PA
Seal material Flat gasket: EPDM
Material for screw connection: PA
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP65
Ambient temperature (operation): -40°C ... 100°C
Technical Specs
ECLASSECLASS-11.0: 23111190
ECLASS-12.0: 23111190
ECLASS-13.0: 23111190
ETIMETIM 9.0: EC000032
UNSPSCUNSPSC 21.0: 31261500
