| Product properties | Product type: Extension adapter |

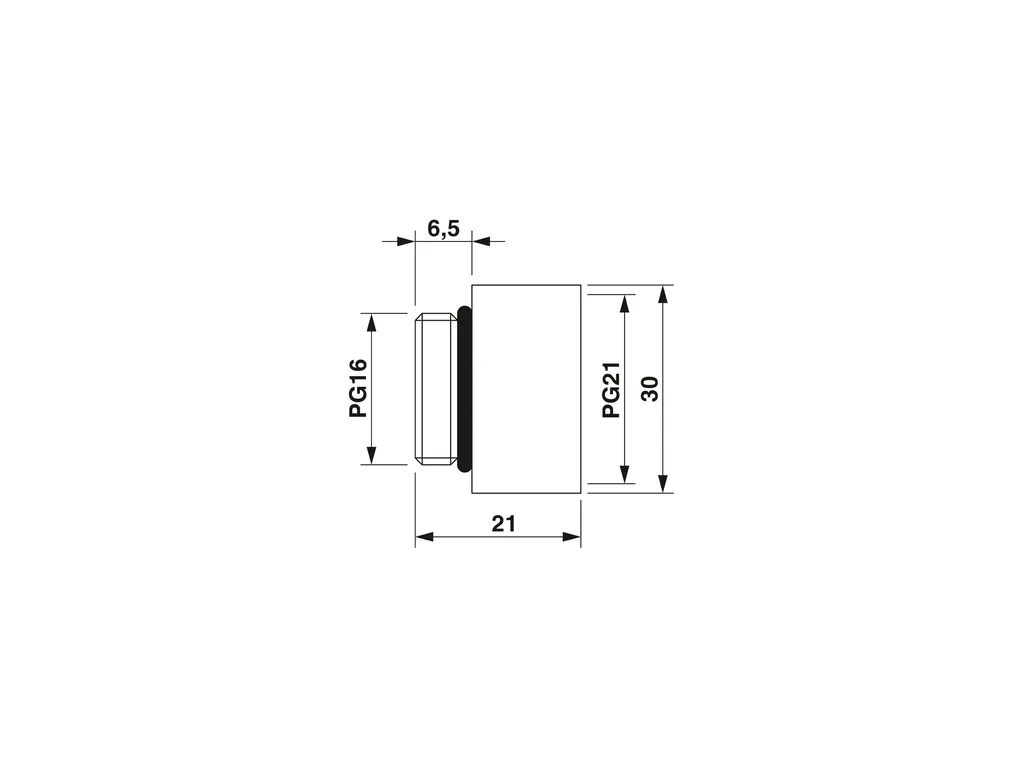

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/89e514621eb4d24cb1c0fbb67ca121ed/-S204x204-FJPG Width: 30.00 mm Length: 21 mm Length of the connecting thread: 6.5 mm Length without connecting thread: 14.5 mm Diameter: 23 mm Connecting thread diameter: 23 mm Hexagon angular dimension: 30 mm Thread type connection side: Pg16 Thread type on seal side: Pg21 |
| Material specifications | Material: Brass, nickel-plated Seal material O-ring: NBR |
| Cable/line | External cable diameter (): 18.5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (Depends on the screw connection used) Ambient temperature (operation): -20°C ... 80°C |
