MC-3/7-MULTI-67-PV-LG - Cable feed-through plates
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: incl. mounting screws 2mm thick coated, galvanized sheet steel |
Product properties | Product type: Cable feed-through No. of conductors: 7 |
Connection data | External cable diameter: 1x 30 mm ... 60 mm Tightening torque: 1.5 Nm ... 2 Nm (Mounting screws) |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ad9a76db4400944daad669750b08500f/-S204x204-FJPG Width: 92 mm Height: 43 mm Length: 222 mm Drill hole distance, horizontal: 62 mm Drill hole distance, vertical: 194 mm Hole diameter: 8.5 mm |
Material specifications | Material: galvanized sheet steel TPE-SEBS Flammability rating according to UL 94: V0 |
Cable/line | External cable diameter (30-60 mm): 1x 30 mm ... 60 mm External cable diameter (10-14 mm): 4x 10 mm ... 14 mm External cable diameter (24-54 mm): 2x 24 mm ... 54 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (Minimum sheet thickness >= 2.5 mm) IP67 (Minimum sheet thickness >= 2.5 mm) Ambient temperature (operation): -40°C ... 100°C |

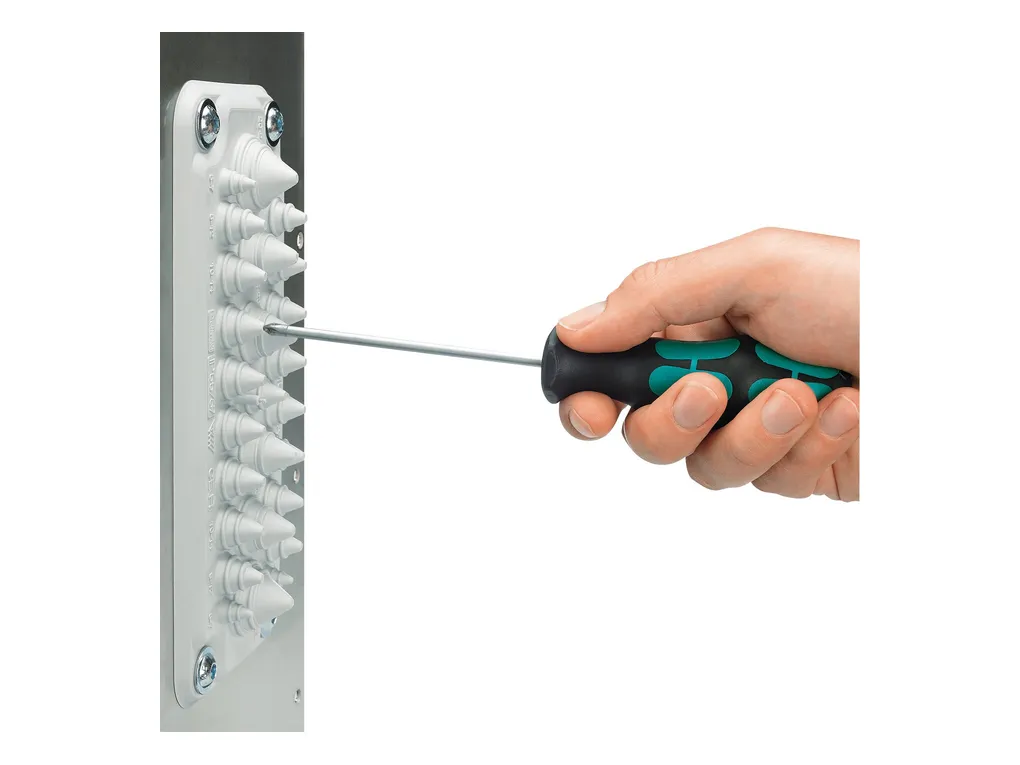

Mounting | Assembly instructions: M8 mounting screw, torque: 1.5 - 2.0 Nm, SW5 Allen key The mounting screws included should be used for assembly. Assembly steps: 1) Fix Multigates with the mounting screws provided (observe torque) 2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone 3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20mm (to improve strain relief). |
ECLASS | ECLASS-11.0: 27400569 ECLASS-12.0: 27400569 ECLASS-13.0: 27400569 |
ETIM | ETIM 9.0: EC001004 |
UNSPSC | UNSPSC 21.0: 31163000 |
