| Notes | General: incl. mounting screws |

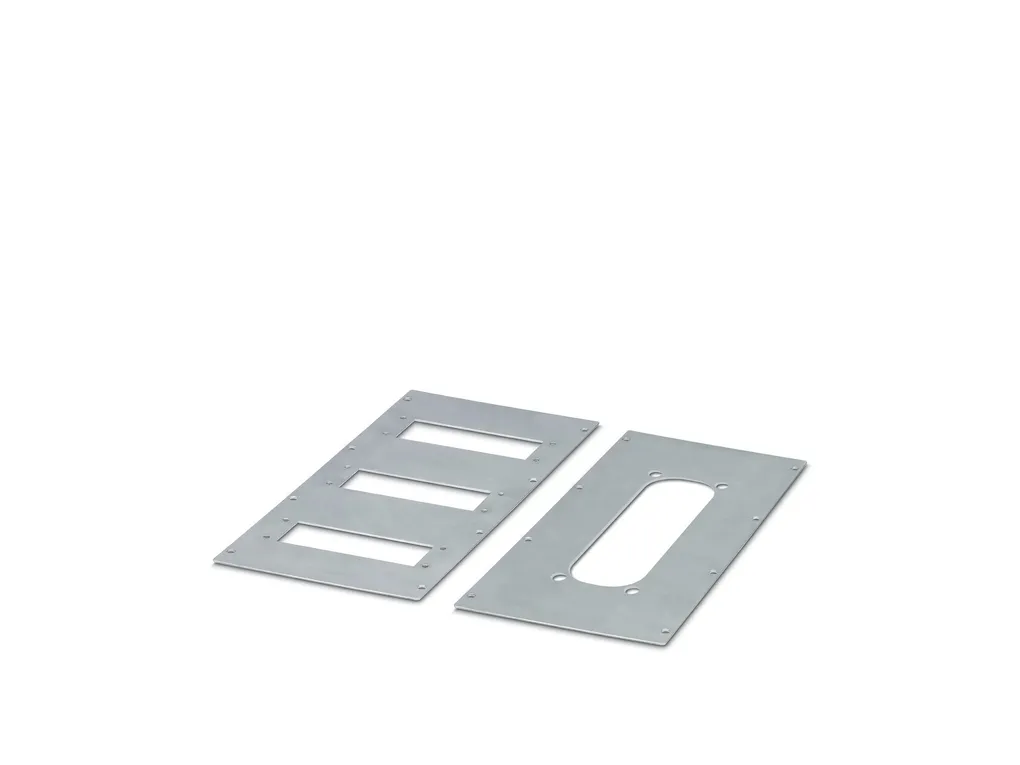

| Product properties | Product type: Adapter plate Seal present: yes |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/45c62c0389126c43bfa4d2143a3f56dc/-S204x204-FJPG Width: 168 mm Height: 2 mm Length: 338 mm |
| Material specifications | Material: Stainless steel 1.4301/AISI 304 Seal material: NBR |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -40°C ... 100°C |
| Mounting | Assembly instructions: Diameter of fixing hole for self-tapping screw: 4.5Ãmm ... 4.7Ãmm, mounting screws (M5x12): 1.0ÃNm ... 1.2ÃNm tightening torque, SW4 Allen key Make sure the seal is fitted correctly (must not be be squeezed out at the sides) |
