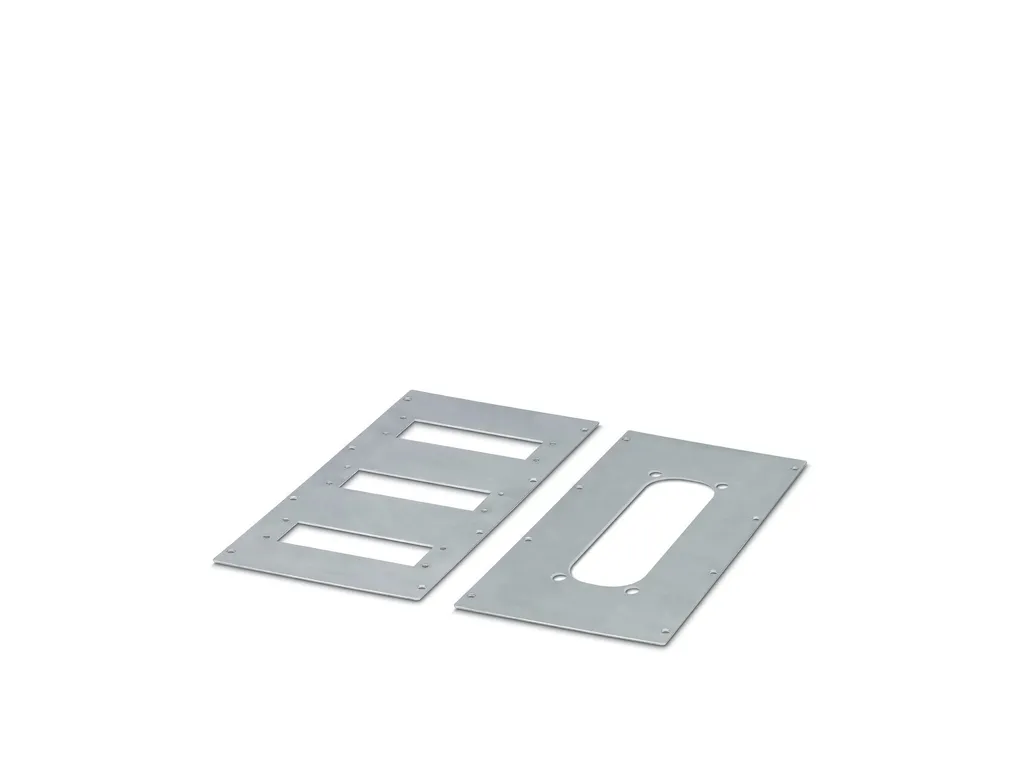

MD-INC-1-SZP-S - Base plate
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: incl. mounting screws |
Product properties | Product type: Adapter plate Seal present: yes |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c1623588afdff149b1614099b82ec681/-S204x204-FJPG Width: 168 mm Height: 2 mm Length: 338 mm |
Material specifications | Material: Stainless steel 1.4301/AISI 304 Seal material: NBR |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 Ambient temperature (operation): -40°C ... 100°C |
Mounting | Assembly instructions: Diameter of fixing hole for self-tapping screw: 4.5mm ... 4.7mm, mounting screws (M5x12): 1.0Nm ... 1.2Nm tightening torque, SW4 Allen key Make sure the seal is fitted correctly (must not be be squeezed out at the sides) |
ECLASS | ECLASS-11.0: 27440201 ECLASS-12.0: 27440201 ECLASS-13.0: 27440201 |
ETIM | ETIM 9.0: EC002309 |
UNSPSC | UNSPSC 21.0: 31261500 |
