A-INL-NPT3/4-N-S - Counter nut
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Flat nut Shielded: no Thread type: 3/4"-NPT |

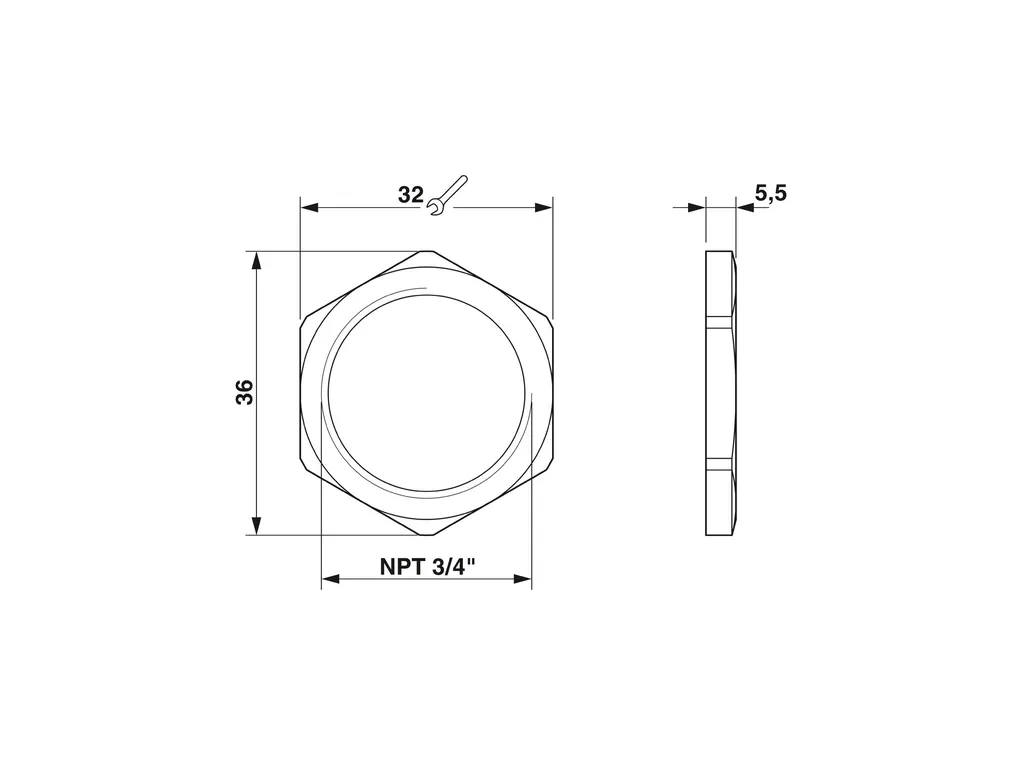

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7055edc36b062145a67dcfcd00bda967/-S204x204-FJPG Length: 5.5 mm Diameter: 25.9 mm Connecting thread diameter: 25.9 mm Wrench size, counter nut: 32 mm Hexagon angular dimension: 36 mm Thread type connection side: 3/4"-NPT |
Material specifications | Material: Brass, nickel-plated |
Cable/line | Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
ETIM | ETIM 9.0: EC000940 |
UNSPSC | UNSPSC 21.0: 31161700 |
