HC-STA-B06PT-BWSC-LT-M20-ELCAL - Connector set
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: B6 Product type: Connector set Number of positions: 6 Connection profile: 6+PE Application: Standard No. of cable outlets: 1 Housing type: Complete housing Seal present: yes Protective cover: yes Series: HC-B Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A Nominal voltage UN: 500 V Nominal current IN: 16 A |
Connection data | Connection method: Push-in connection Connection technology: Push-in connection Conductor cross section: 0.14 mm² ... 2.5 mm² (with ferrule) Connection cross section AWG: 26 ... 14 Stripping length: 8 mm ... 10 mm |

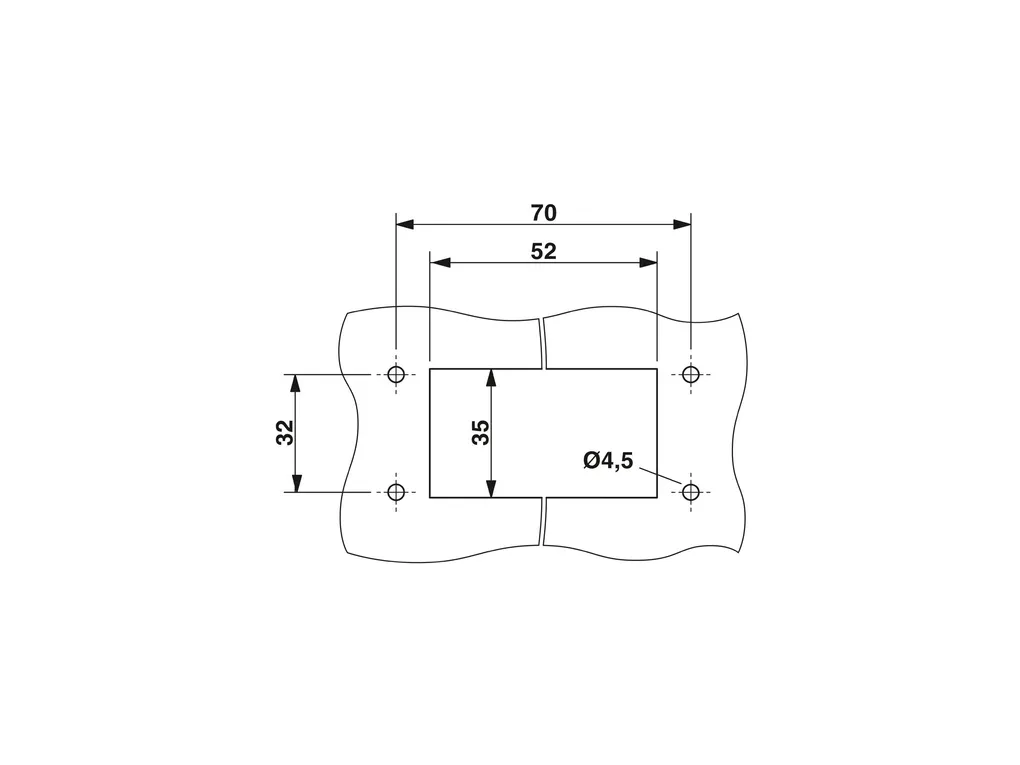

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7d738c91a7a56245bae808080bffd972/-S204x204-FJPG Width: 53 mm Height: 82.5 mm Length: 80.5 mm Drill hole distance, horizontal: 70 mm Drill hole distance, vertical: 32 mm Hole diameter: 4.5 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 52 mm |
Material specifications | Material: Die-cast aluminum, saltwater-resistant PA Flammability rating according to UL 94: V0 Seal material Profile gasket: NBR, conductive Seal material Flat gasket: NBR, conductive Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Locking latch material: PA Impact strength: IK08 |
Cable/line | External cable diameter (): 6 mm ... 12 mm 10 mm ... 12 mm (for UL 514 B) |
Mechanical properties | Mechanical data Locking type: Latch Insertion/withdrawal cycles: ⥠500 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 100°C |
Mounting | Mounting type: Screw mounting Assembly instructions: Coding also using the CP-HC (1686478) coding profiles. HC-B6../ HC-B10..for two coding profiles. HC-B16../ HC-B24..for four coding profiles. Connectors may only be operated when there is no load/the power is switched off. Can be used for solid wires and stranded wires with ferrule. Connection method: Push-in connection |
ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
ETIM | ETIM 9.0: EC002636 |
UNSPSC | UNSPSC 21.0: 39121400 |
