PHOENIX CONTACT 1417376
PHOENIX CONTACTNot available

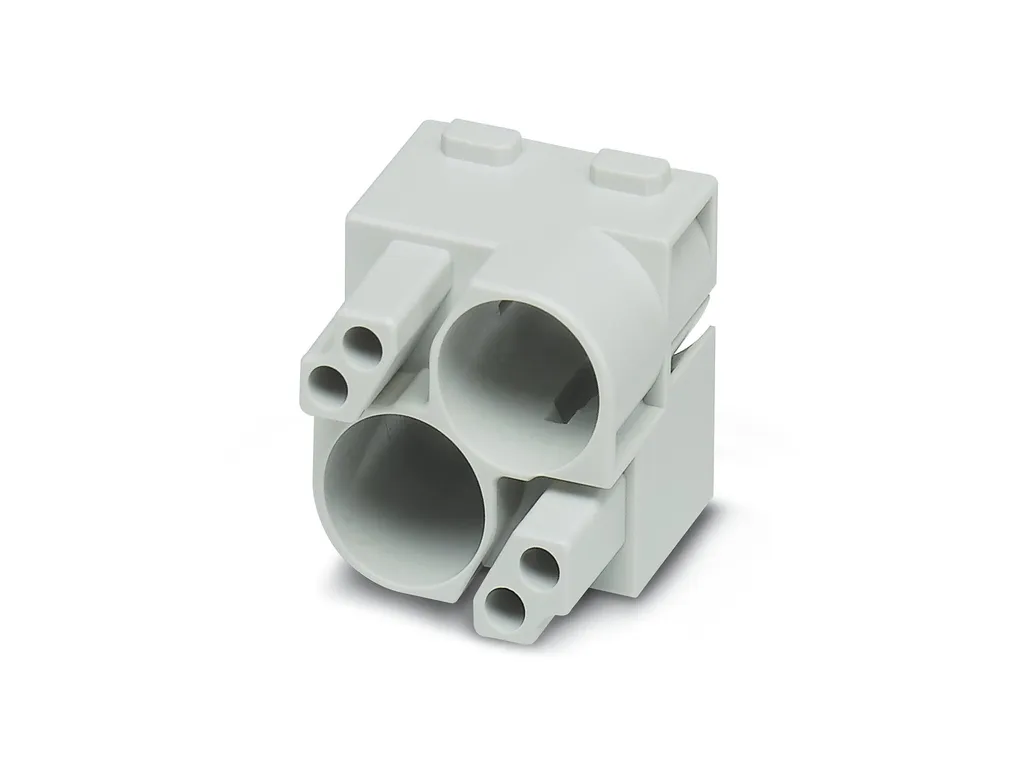

HC-M-02-EMC-F - Contact insert module

Contact insert module, number of positions: 2, Socket, Crimp connection, 48 V, 10 A, 0.14 mm2...2.5 mm2, application: Data/signal, for using two EMC connectors (female connector), number of positions: 1, 4, 8
Product Code: 1417376
Partner cod.: 1417376
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
NotesGeneral: For HEAVYCON housing type B6 to B48, HC-M-B...MF-... hinged module carrier frame required.
Connectors may be operated only when there is no load/voltage.
Product propertiesProduct type: EMC insert, modular
Number of positions: 2
Connection profile: 2
Contact numbering: 1 - 2
Application: Data/signal
Number of module slots: 2
Number of slots: 2
Contact material type: turned
rolled
Series: HC-M-EMV
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Electrical propertiesRated voltage (III/3): 48 V
Rated surge voltage: 0.8 kV
Rated current: 10 A
Connection dataConnection technology
Connection technology: Crimp connection
Conductor connection
Conductor cross section: 0.14 mm² ... 2.5 mm²
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/daae4de4b969824b925b9eb5069c54ad/-S204x204-FJPG
Width: 34.2 mm
Height: 34 mm
Length: 29.4 mm
Mechanical characteristics
Minimum housing height: 72 mm
Contact diameter: 1.6 mm
Material specificationsMaterial: Zinc alloy
Flammability rating according to UL 94: V0
Contact material: Copper alloy
Contact surface material: Ag (power)/Au (signal)
Contact carrier material: PC
Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3)
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 500
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Standards and regulationsTesting
Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3)
MountingAssembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
Plastic module for the HC-M-EMV-BU/3-9.5 EMC connector
Technical Specs
ECLASSECLASS-11.0: 27440218
ECLASS-12.0: 27440218
ECLASS-13.0: 27440218
ETIMETIM 9.0: EC000438
UNSPSCUNSPSC 21.0: 39121400
Description
Contact insert module, number of positions: 2, Socket, Crimp connection, 50 V, 10 A, 0.14 mm² ... 2.5 mm², application: Data/signal, for using two HC-M-EMV-BU/3-9,5 EMC connectors (socket version, each 4-pos.)
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00458.pdf

Approvals_00549.pdf

Technical_drawing_14364.pdf
