| Product properties | Product type: Flat nut Thread type: M16 |

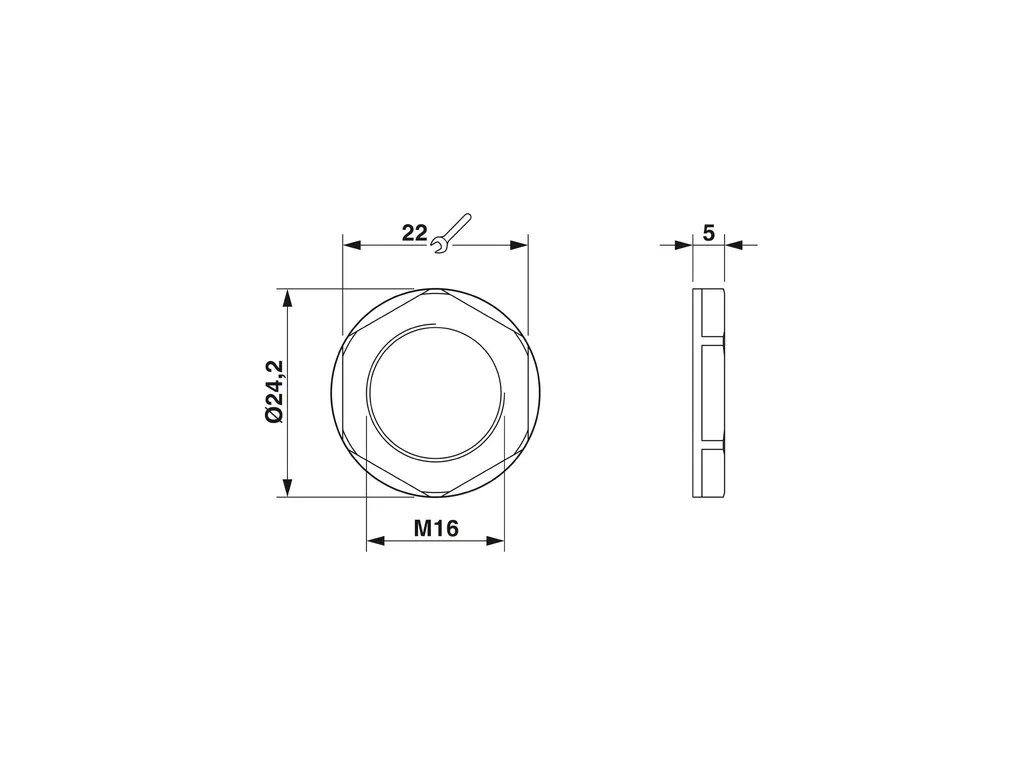

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/695a2372264b5a4b91b3def07eda89d4/-S204x204-FJPG Length: 5 mm Diameter: 16 mm Connecting thread diameter: 16 mm Wrench size, counter nut: 22 mm Hexagon angular dimension: 24.2 mm Thread type connection side: M16 x 1.5 Thread pitch: 1.5 mm |
| Material specifications | Material: PA 6.6 GF |
| Cable/line | Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 100°C |
