A-INL-M63-P-LG - Counter nut
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Flat nut Thread type: M63 |

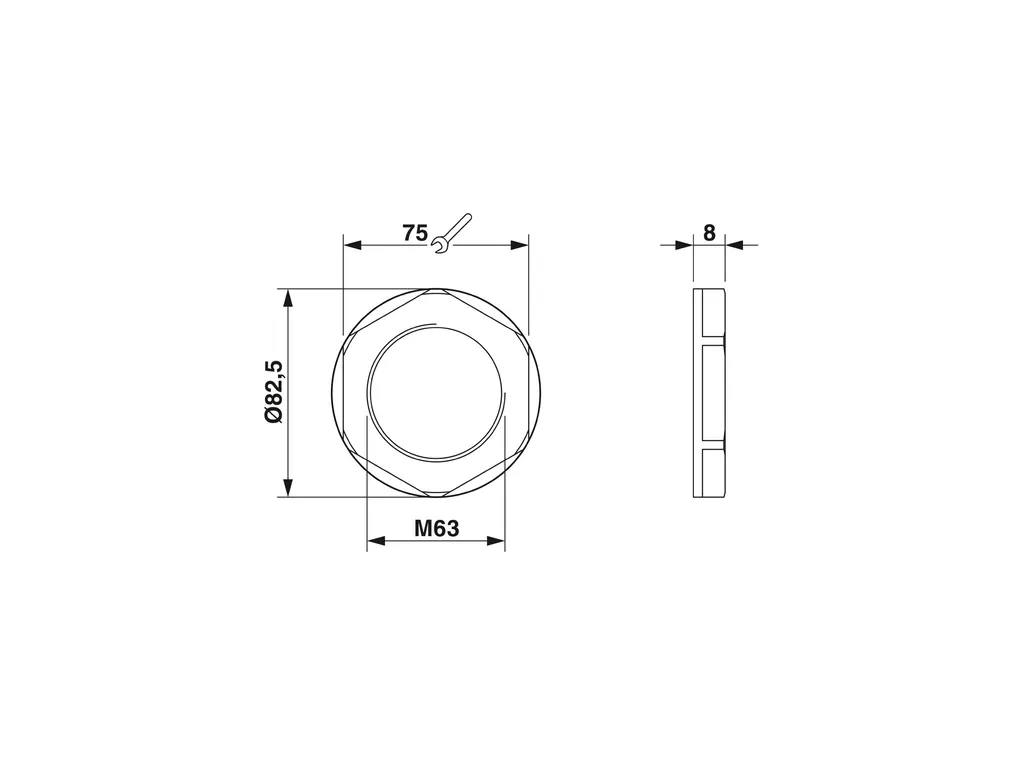

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e518b710d9233d428462a97d16038a0e/-S204x204-FJPG Length: 8 mm Diameter: 63 mm Connecting thread diameter: 63 mm Wrench size, counter nut: 75 mm Hexagon angular dimension: 82.5 mm Thread type connection side: M63 x 1.5 Thread pitch: 1.5 mm |
Material specifications | Material: PA 6.6 GF |
Cable/line | Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 100°C |
ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
ETIM | ETIM 9.0: EC000940 |
UNSPSC | UNSPSC 21.0: 31161700 |
