| Notes | General: for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product properties | Type: D7 Product type: Housing with locking latch Application: Standard Housing type: Panel mounting base Protective cover: yes Shielded: no Pg screw connection: none |

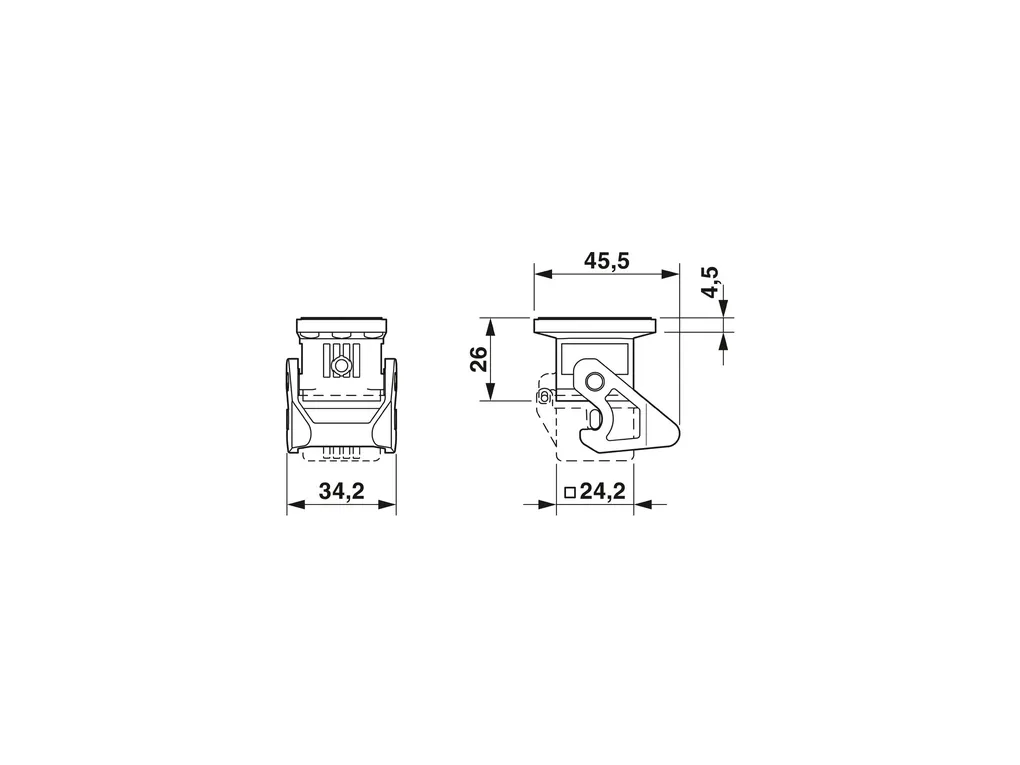

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6a941ffe58544d4fa08bb9207eb93c02/-S204x204-FJPG Width: 34.2 mm Height: 25.5 mm Length: 24.2 mm Hole diameter: 3.2 mm Installation dimensions Width of the assembly cutout: 21 mm Length of the assembly cutout: 21 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Interlock) V0 (Protective cover) Seal material Flat gasket: NBR, conductive Housing surface material: uncoated Material, protective cover: PA Locking latch material: PA Impact strength: IK06 Housing material: Die-cast aluminum, salt water resistant |
| Mechanical properties | Mechanical data Locking type: Latch |
| Mounting | Assembly instructions: For mounting pin inserts |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (with locked protective cover) IP67 (when plugged in) Impact strength: IK06 Ambient temperature (operation): -40°C ... 125°C |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
