Notes | General: for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
Product properties | Type: D7 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Type of the screw connection: M20 Housing type: Coupling housings Series: HC-D Shielded: no Cable outlet: straight Pg screw connection: with |

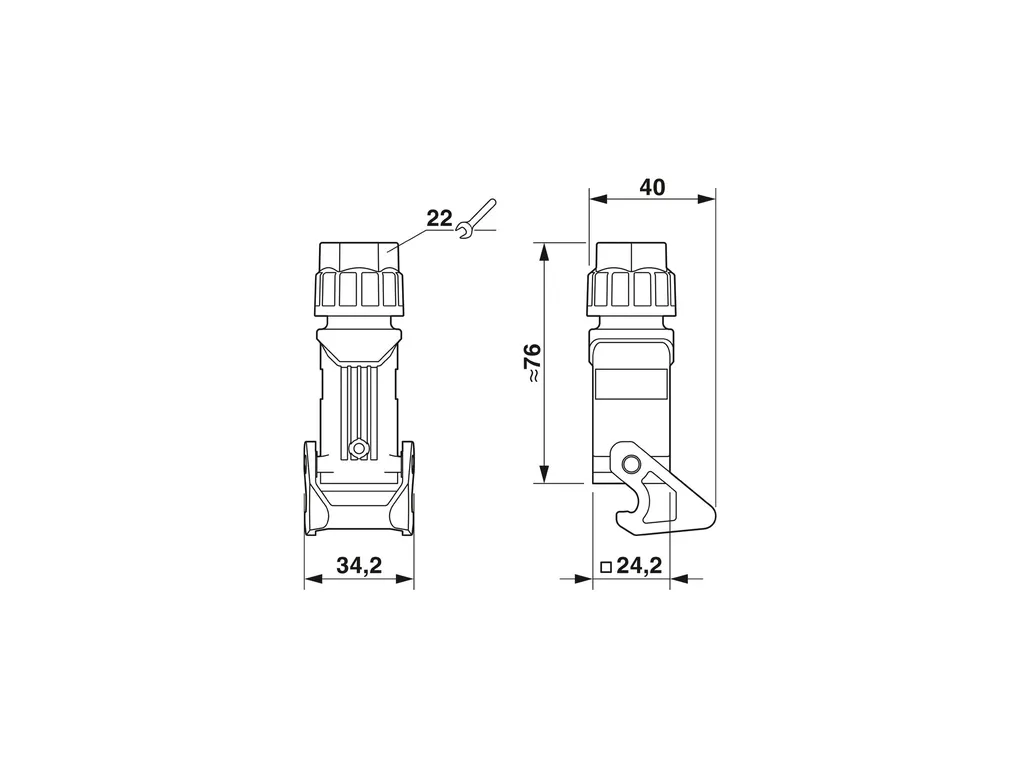

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6e788d416b33aa4881c854211bff54b6/-S204x204-FJPG Width: 34.2 mm Height: 76 mm Length: 24.2 mm |
Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Locking latch material: PA Impact strength: IK06 Housing material: PA |
Mechanical properties | Mechanical data Type of the screw connection: M20 Locking type: Latch |
Cable/line | External cable diameter (): 4 mm ... 10 mm Tightening torque, union nut: 5.00 Nm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Impact strength: IK06 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
