PHOENIX CONTACT 1419270
PHOENIX CONTACT 1419270
PHOENIX CONTACTNot available

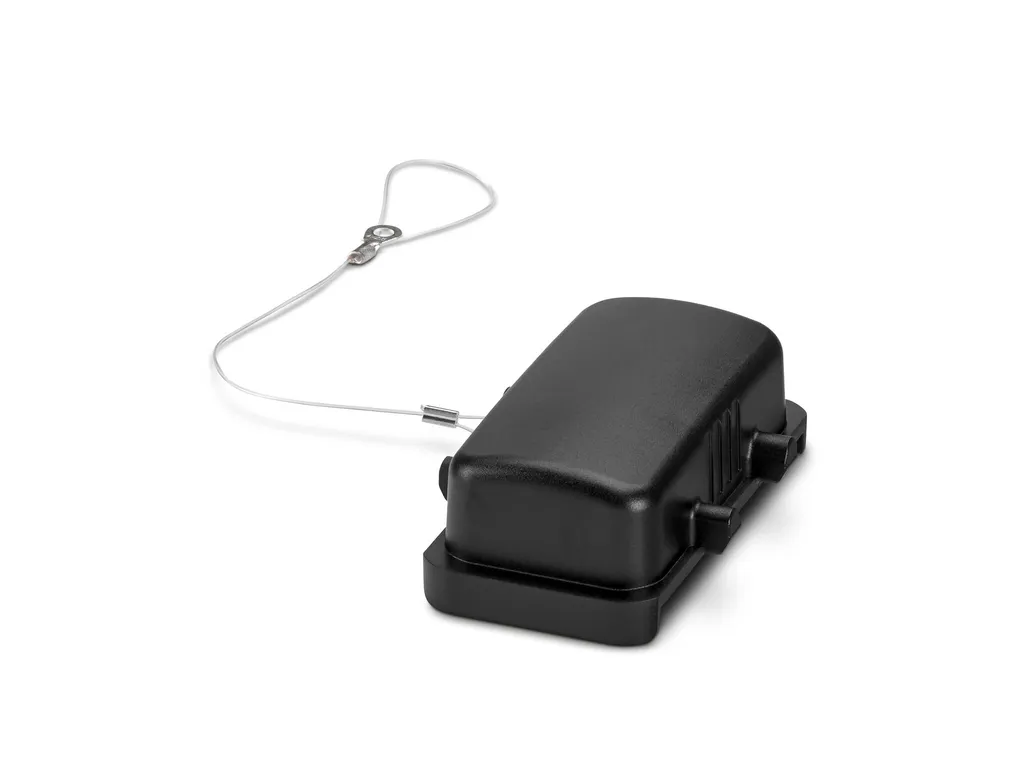

HC-STA-D07-BCLFS-PLR-BK - Protective cover

Protective cover D7, for single locking latch, material: PA, protective cover material: PA, height: 29.4 mm, seal: yes, Standard, with lanyard, for socket inserts
Product Code: 1419270
Partner cod.: 1419270
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
NotesGeneral: For use on the panel mounting base
Product propertiesType: D7
for supporting base element with single locking latch
Product type: Protective cover
Application: Standard
Housing type: Protective cover
Seal present: yes

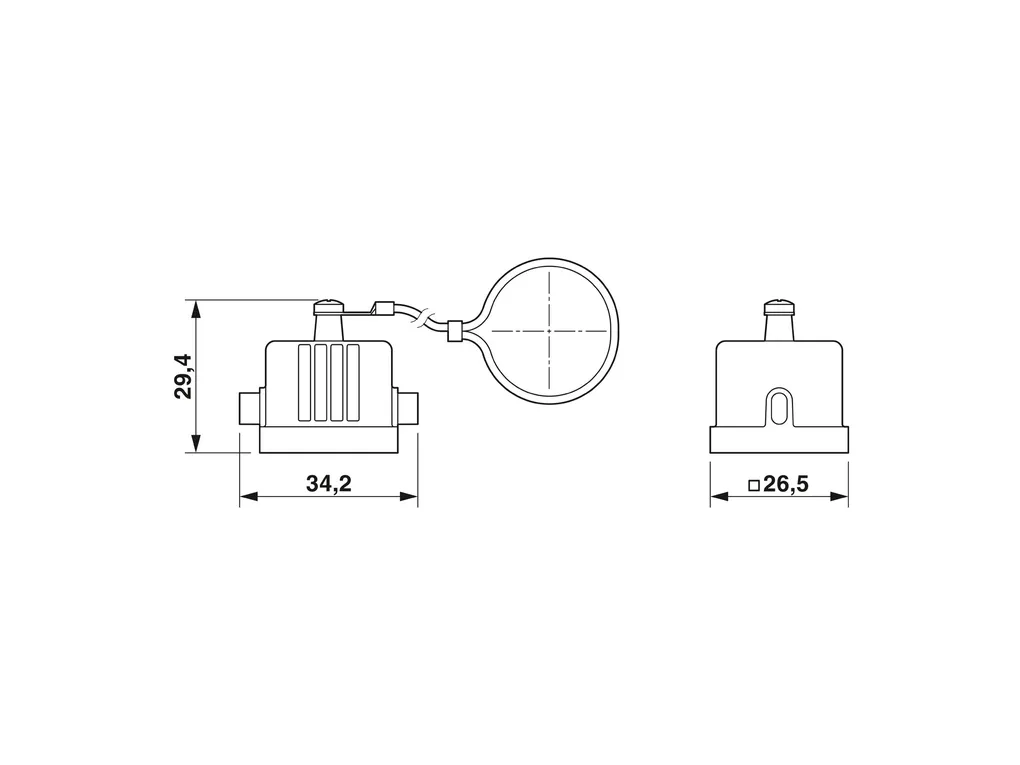

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/50b5aa51ea0e6548819f171ba6582cad/-S204x204-FJPG
Width: 34.2 mm
Height: 29.4 mm
Length: 26.5 mm
Diameter: 25 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: V0 (Polyamide housing)
Seal material: NBR
Material, protective cover: PA
Housing material: PA
Mechanical propertiesMechanical data
Locking type: Pin
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
Ambient temperature (operation): -20°C ... 100°C
MountingAssembly instructions: Plastic protective cover for short-term protection
Technical Specs
ECLASSECLASS-11.0: 27440208
ECLASS-12.0: 27440208
ECLASS-13.0: 27440208
ETIMETIM 9.0: EC002314
UNSPSCUNSPSC 21.0: 39121400
Description
Protective cover D7, for single locking latch, material: PA, protective cover material: PA, height: 29.4 mm, seal: yes, Standard, With lanyard, diameter of retaining cord eyelet: 25 mm, for socket inserts
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00354.pdf

Technical_drawing_14536.pdf
