PHOENIX CONTACT 1419274
PHOENIX CONTACT 1419274
PHOENIX CONTACTNot available

HC-STA-D07-HCLWS-PLR-BK - Protective cover

Protective cover D7, with single locking latch, material: PA, protective cover material: PA, height: 30 mm, seal: yes, Standard, with lanyard, for socket inserts
Product Code: 1419274
Partner cod.: 1419274
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: D7
for sleeve housing without single locking latch
Product type: Protective cover
Application: Standard
Housing type: Protective cover
Seal present: yes

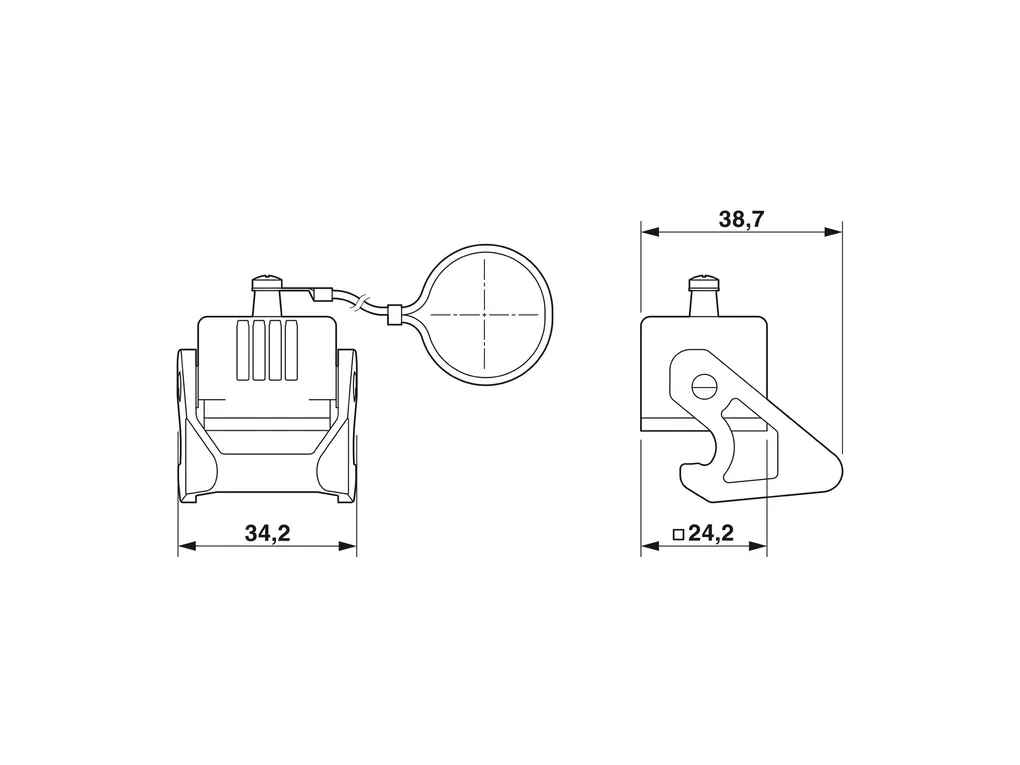

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7745607d303ea740b38133611b388068/-S204x204-FJPG
Width: 24.2 mm
Height: 30 mm
Length: 24.2 mm
Diameter: 25 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: V0 (Polyamide housing)
V0 (Locking latch)
Seal material: NBR
Material, protective cover: PA
Locking latch material: PA
Housing material: PA
Mechanical propertiesMechanical data
Locking type: Latch
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
Ambient temperature (operation): -20°C ... 100°C
MountingAssembly instructions: Plastic protective cover for short-term protection
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00354.pdf

Technical_drawing_14540.pdf
