Notes | Trade restriction CE note: The products are offered exclusively for export outside the EU and the European Economic Area. |
Mounting | Mounting type: Front mounting, with 1/2 inch-14 NPT mounting thread Connection method: Individual wires |
Product properties | Product type: Circular connectors (device side) Number of positions: 3 No. of cable outlets: 1 Shielded: no Insulation characteristics Degree of pollution: 3 |
Material specifications | Flammability rating according to UL 94: V-0 Housing surface material: Al anodized Contact material: Copper alloy Contact surface material: Au Contact carrier material: PVC Material for screw connection: Anodized aluminum |
Electrical properties | Insulation resistance: ⥠100 Mé Nominal voltage UN: 300 VAC 300 VDC Nominal current IN: 13 A |
Connection data | Conductor connection Connection method: Individual wires Contact connection type: Socket Conductor cross section: 0.75 mm² Tightening torque: 10 lbf-in. |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 500 |

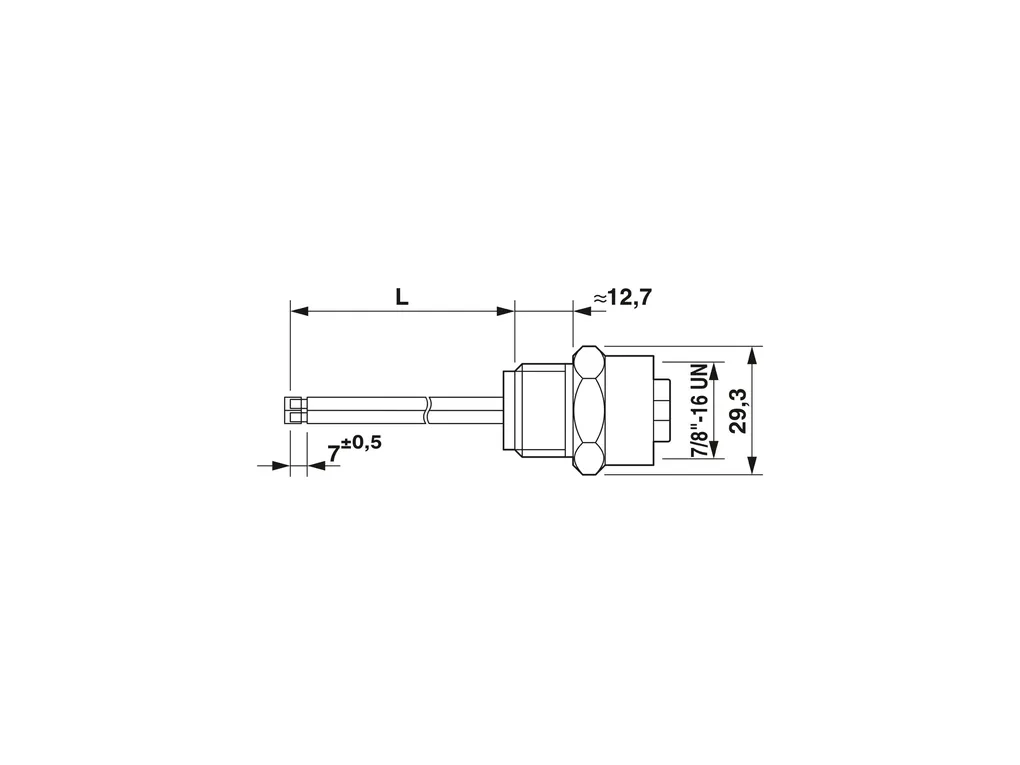

Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: 7/8"-16UNF Connection 2 Head design: free cable end |
Cable/line | Cable length: 1 m Cable type: PVC litz wire Wire diameter incl. insulation: 1.78 mm Single wire, color: black 1, brown 2, blue 3 Cable cross section: 0.75 mm² Conductor structure signal line: 16 x AWG 30 AWG signal line: 18 Material wire insulation: PVC Thickness, insulation: Core insulation |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 Ambient temperature (operation): -20°C ... 80°C (Plug) -20°C ... 80°C (cable, fixed installation) |
Standards and regulations | Standard designation: 7/8" connector Standards/specifications: UL2238 Note: Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 |

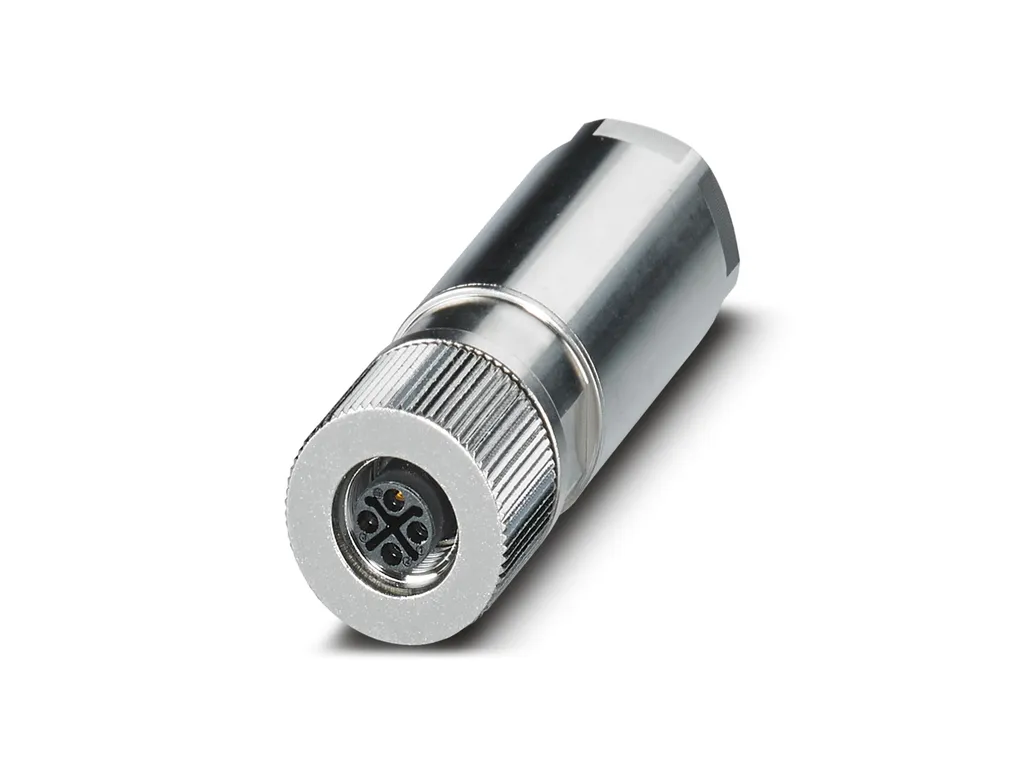

Description other products
