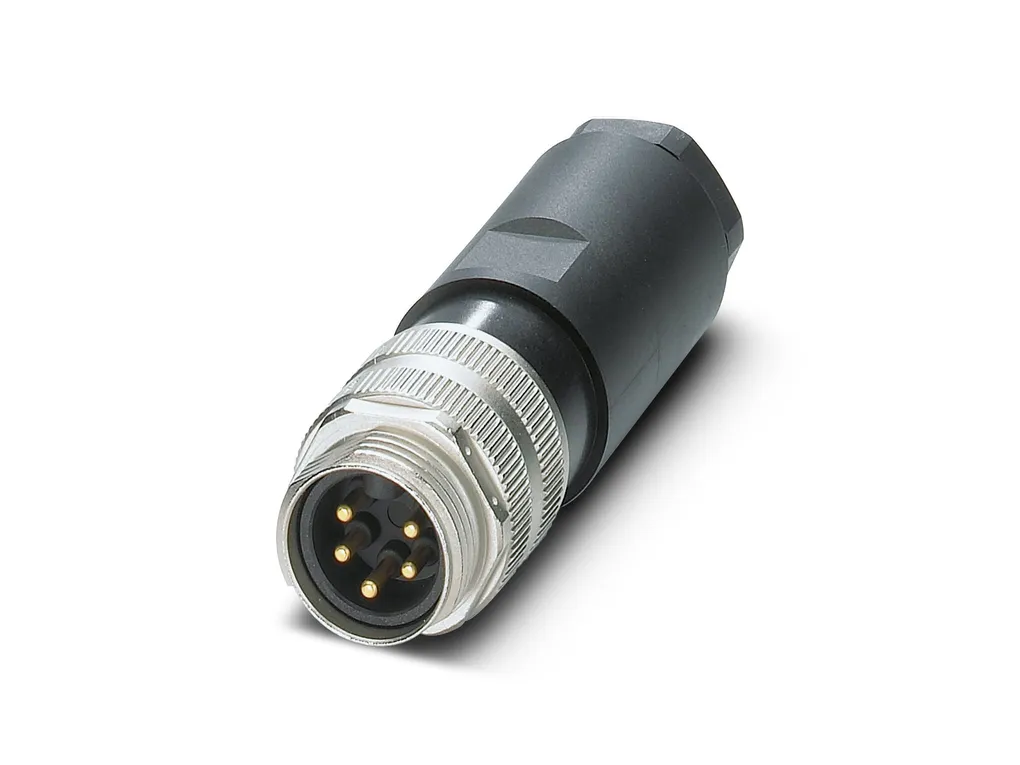

SACC-M12MRX-8CT-CL SH - Data connector

Data connector, Ethernet CAT6_A (10 Gbps), PROFINET CAT6_A (10 Gbps), 8-position, shielded, Plug angled M12, coding: X, Crimp connection, knurl material: Zinc die-cast, tin-plated, external cable diameter 6.5 mm ... 10 mm, without crimp contacts

Product Code: 1422845

Partner cod.: 1422845

PHOENIX CONTACT

Notes	General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties.
Mounting	Assembly instructions: Contacts can be clipped in place and unclipped without tools The pin assignment can be rotated in a 30° pitch to the cable outlet Connection method: Crimp connection
Product properties	Product type: Circular connector (cable-side) Sensor type: Ethernet Number of positions: 8 Application: Data No. of cable outlets: 1 Shielded: yes Coding: X Cable outlet: angled Insulation characteristics Overvoltage category: II Degree of pollution: 3
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/532b7855d154d9488ac2f0df4f2126e8/-S204x204-FJPG Length: 52 mm Wrench size, union nut: 15 mm Wrench size, counter nut: 14 mm External dimensions Outside diameter: 6.5 mm ... 10 mm Housing Diameter housing: 16 mm
Material specifications	Flammability rating according to UL 94: V0 Seal material: FKM Material of grip body: Zinc die-cast, nickel-plated Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, tin-plated Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DINEN45545-2 (Risk level HL1 - HL3)
Connection data	Conductor connection Connection method: Crimp connection Connection cross section: 0.14 mm² ... 0.34 mm² (flexible) Connection cross section AWG: 26 ... 22 (flexible) Stripping length of the individual wire: 4 mm +0,5mm Tightening torque: 0.4 Nm (M12 knurl) 1.5 Nm (Screw plug insert with sleeve housing as far it will go) 4 Nm (Pressure nut with coupling sleeve) Pin assignment Contact \| Color (signal designation) \| Contact (optional): 1 = WHOG (D1+) 2 = OG (D1-) 3 = WHGN (D2+) 4 = GN (D2-) 5 = WHBN (D4+) 6 = BN (D4-) 7 = WHBU (D3-) 8 = BU (D3+)
Electrical properties	Rated surge voltage: 0.8 kV Insulation resistance: Ã¢¥ 100 Ã© Nominal voltage U_N: 48 VAC 60 VDC Nominal current I_N: 0.5 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢¥ 100
Connector	Connection 1 Head design: Plug Head cable outlet: angled Head thread type: M12 Coding: X
Cable/line	Signal type/category: Ethernet CAT6_A (IEC 11801), 10 Gbps PROFINET CAT6_A (IEC 11801), 10 Gbps Stripping length of the individual wire: 4 mm +0,5mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) Ambient temperature (assembly): -5°C ... 50°C
Standards and regulations	Testing Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DINEN45545-2 (Risk level HL1 - HL3) M12 Standard designation: M12 connector Shock, vibration Standards/specifications: IEC 61076-2-109 EN50155:2001
