| Notes | General: Use only flexible conductors with ferrule (in conjunction with CRIMPFOX 6 only) Connectors may be operated only when there is no load/voltage. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Connection method: Push-in connection |

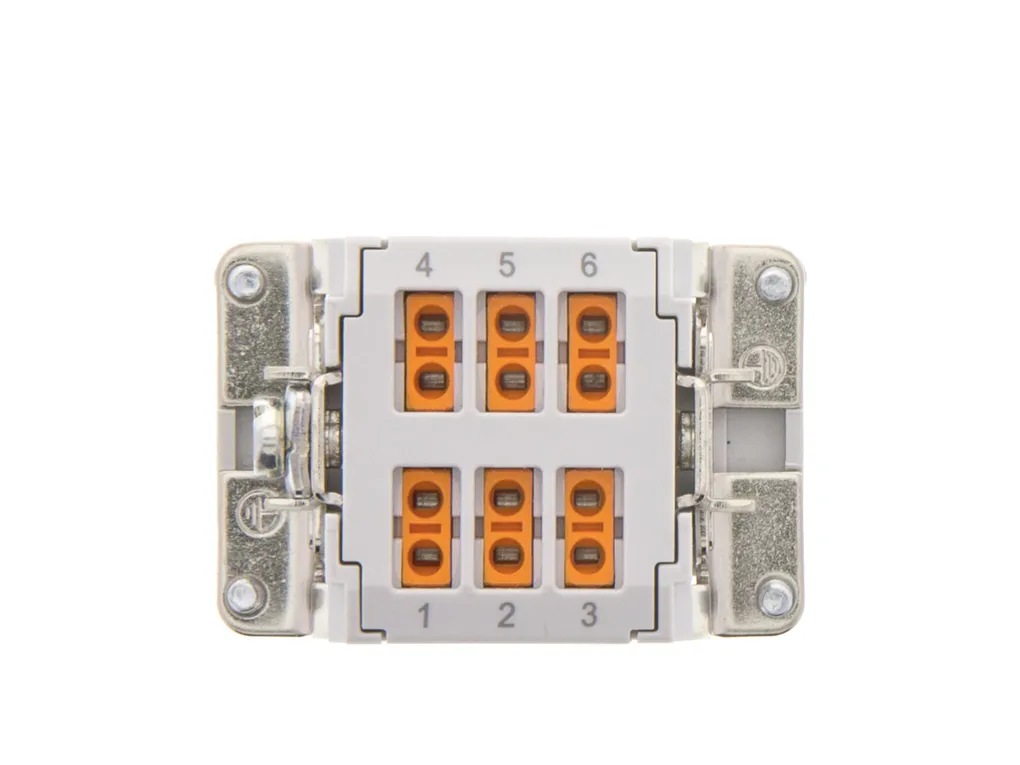

| Product properties | Type: B6 Product type: Contact insert with a fixed no. of positions Number of positions: 6 Connection profile: 6+PE Contact numbering: 1 - 6 Application: Power Number of connections per position: 2 Series: HC-B Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/03955102f0617448b63ee2f931c77c89/-S204x204-FJPG Width: 34 mm Height: 32 mm Length: 50.5 mm Drill hole distance, horizontal: 44 mm Mechanical characteristics Contact diameter: 2.5 mm |
| Connection data | Connection technology Connection technology: Push-in connection Number of connections per position: 2 Conductor connection Conductor cross section: 0.25 mm² ... 1.5 mm² Connection cross section AWG: 24 ... 16 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 8 mm ±1mm |
| Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 500 |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
| Standards and regulations | Constructional and testing regulations: DINEN61984 DINEN60664 IEC 60352 Tests: DINEN61984 DINEN60664 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
