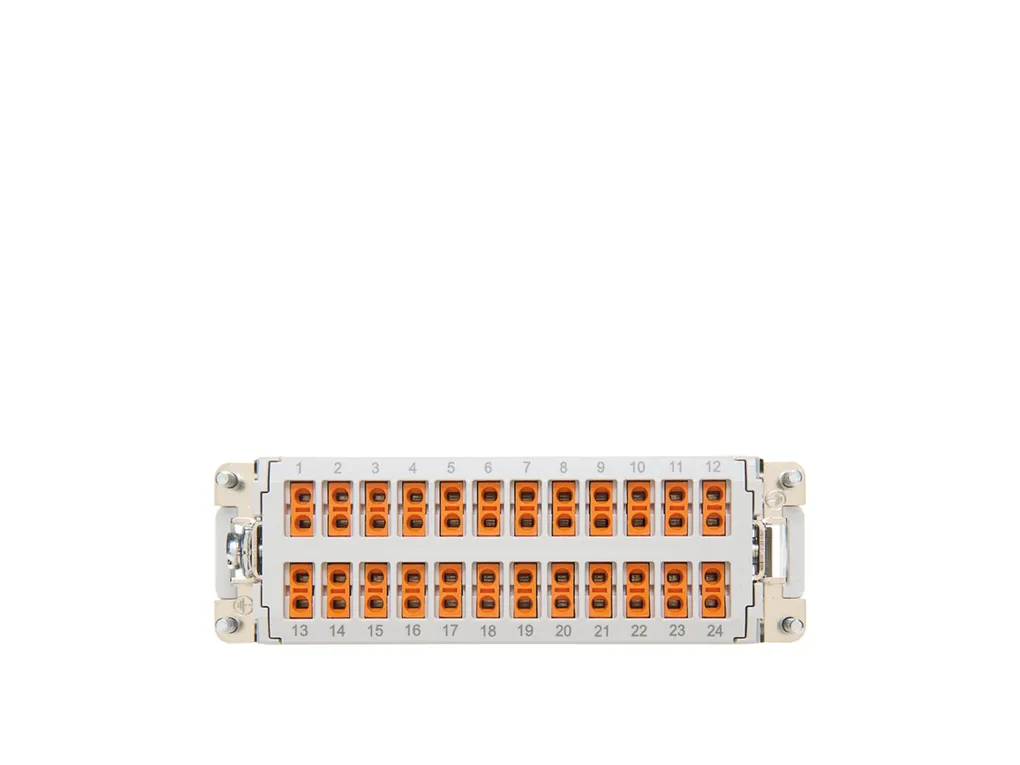

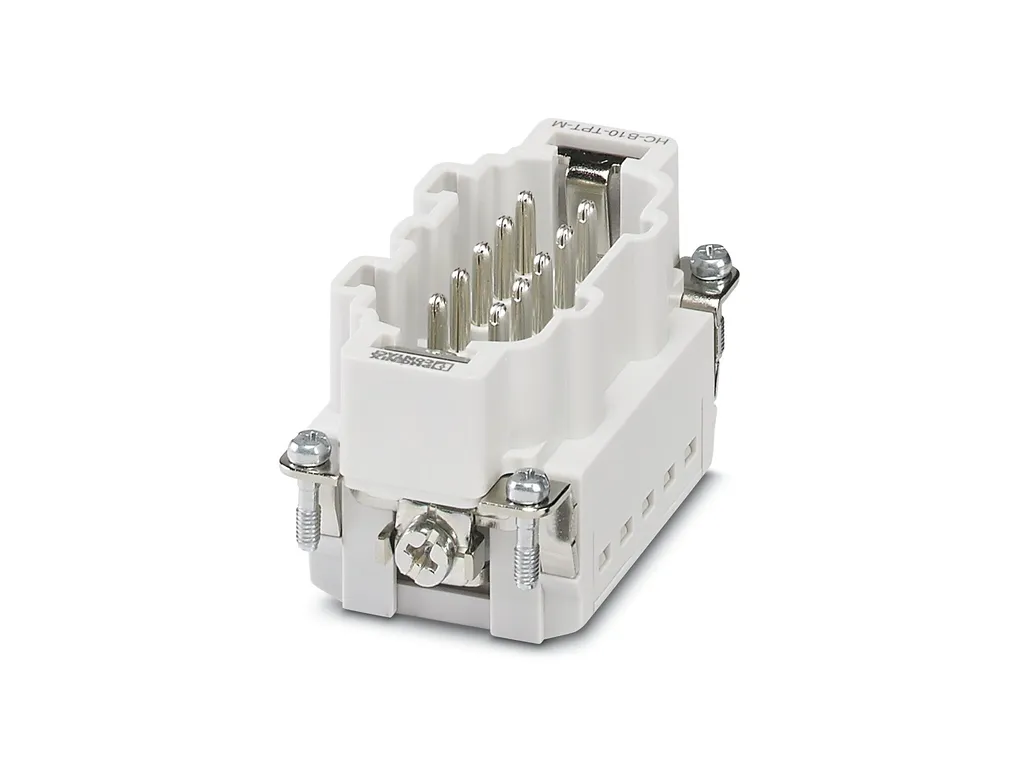

HC-B24-I-TPT-M - Contact insert
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Use only flexible conductors with ferrule (in conjunction with CRIMPFOX 6 only) Connectors may be operated only when there is no load/voltage. |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Connection method: Push-in connection |
Product properties | Type: B24 B48 Product type: Contact insert with a fixed no. of positions Number of positions: 24 Connection profile: 24+PE Contact numbering: 1 - 24 Application: Power Number of connections per position: 2 Series: HC-B Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6ed16820235e4a498cc7917602007fc0/-S204x204-FJPG Width: 34 mm Height: 34.6 mm Length: 111 mm Drill hole distance, horizontal: 104 mm Mechanical characteristics Contact diameter: 2.5 mm |
Connection data | Connection technology Connection technology: Push-in connection Number of connections per position: 2 Conductor connection Conductor cross section: 0.25 mm² ... 1.5 mm² Connection cross section AWG: 24 ... 16 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 8 mm ±1mm |
Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 500 |
Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
Standards and regulations | Constructional and testing regulations: DINEN61984 DINEN60664 IEC 60352 Tests: DINEN61984 DINEN60664 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121500 |
