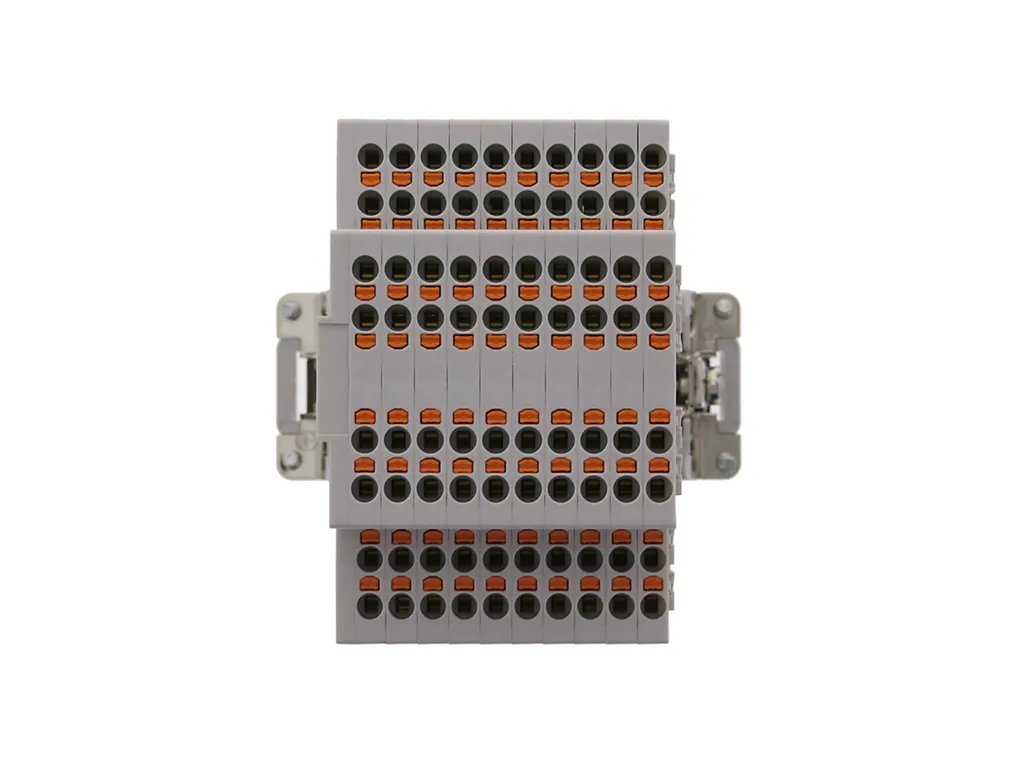

| Notes | General: For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B16 type For solid conductors or stranded conductors with ferrules Connectors may be operated only when there is no load/voltage. |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |
| Product properties | Product type: Contact insert with a fixed no. of positions Connection profile: 40+PE Number of connections per position: 2 Series: HC-D |
| Connection data | Connection technology Connection technology: Push-in connection Number of connections per position: 2 Conductor connection Conductor cross section: 0.5 mm² ... 1.5 mm² Connection cross section AWG: 20 ... 16 Stripping length of the individual wire: 10 mm |
| Electrical properties | Rated voltage (III/3): 250 V Rated surge voltage: 6 kV Rated current: 10 A SCCR: 5 kA (UL 2237) |
| Material specifications | Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PA Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Standards and regulations | Testing Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
| ETIM | ETIM 8.0: EC000438 |
| UNSPSC | UNSPSC 21.0: 39121500 |
