| Mounting | Mounting type: Snap in Connection method: Crimp connection |
| Product properties | Product type: Crimp contact Type: Individual male contact Contact material type: turned |
| Connection data | Connection method: Crimp connection Contact connection type: Pin Connection technology: Crimp connection Conductor cross section: 0.14 mm² ... 0.34 mm² (flexible) Connection cross section AWG: 26 ... 22 (flexible) Stripping length of the individual wire: 4 mm +0,5mm Conductor cross section flexible: 0.14 mm² ... 0.34 mm² |
| Material specifications | Contact material: CuZn Contact surface material: Ni/Au |

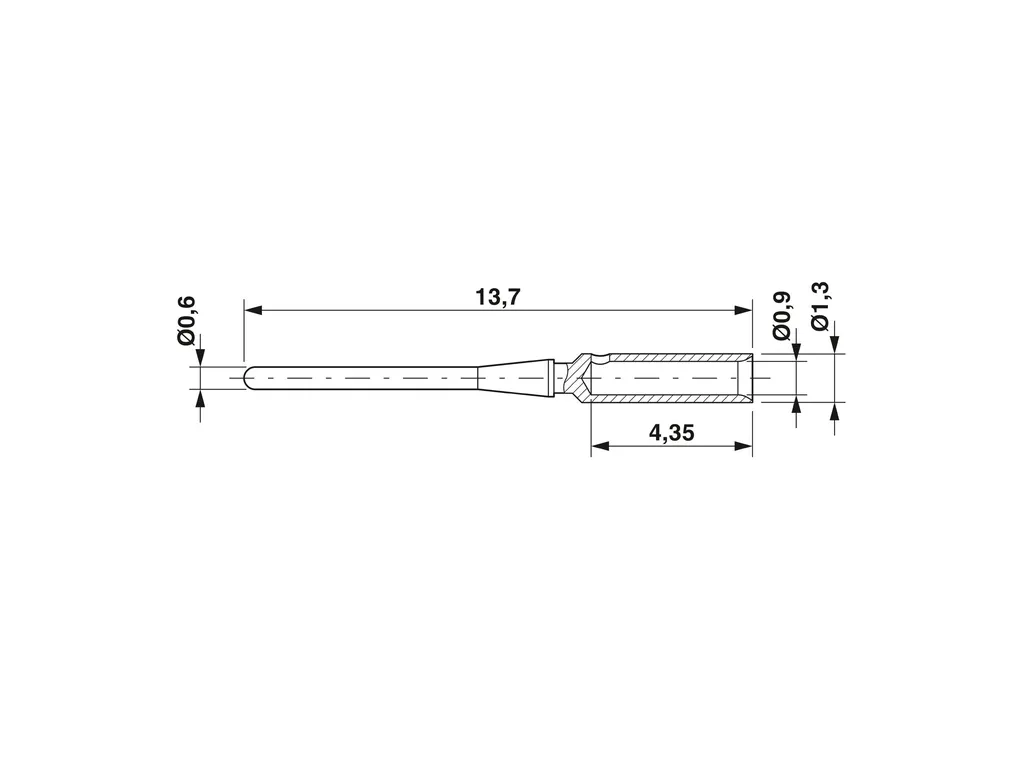

| Dimensions | Mechanical characteristics Contact diameter: 0.6 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 85°C |
| ECLASS | ECLASS-11.0: 27440204 ECLASS-12.0: 27440204 ECLASS-13.0: 27440204 |
| ETIM | ETIM 9.0: EC000796 |
| UNSPSC | UNSPSC 21.0: 39121500 |
