Product properties | Product type: Power cable Number of positions: 3 Application: Power supply No. of cable outlets: 1 Shielded: no Coding: S Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Material specifications | Flammability rating according to UL 94: V0 Material of grip body: PP Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
Electrical properties | Contact resistance: ⤠5 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 690 VAC Nominal current IN: 16 A Protective circuit: unwired |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 Coding type: S (Power) |

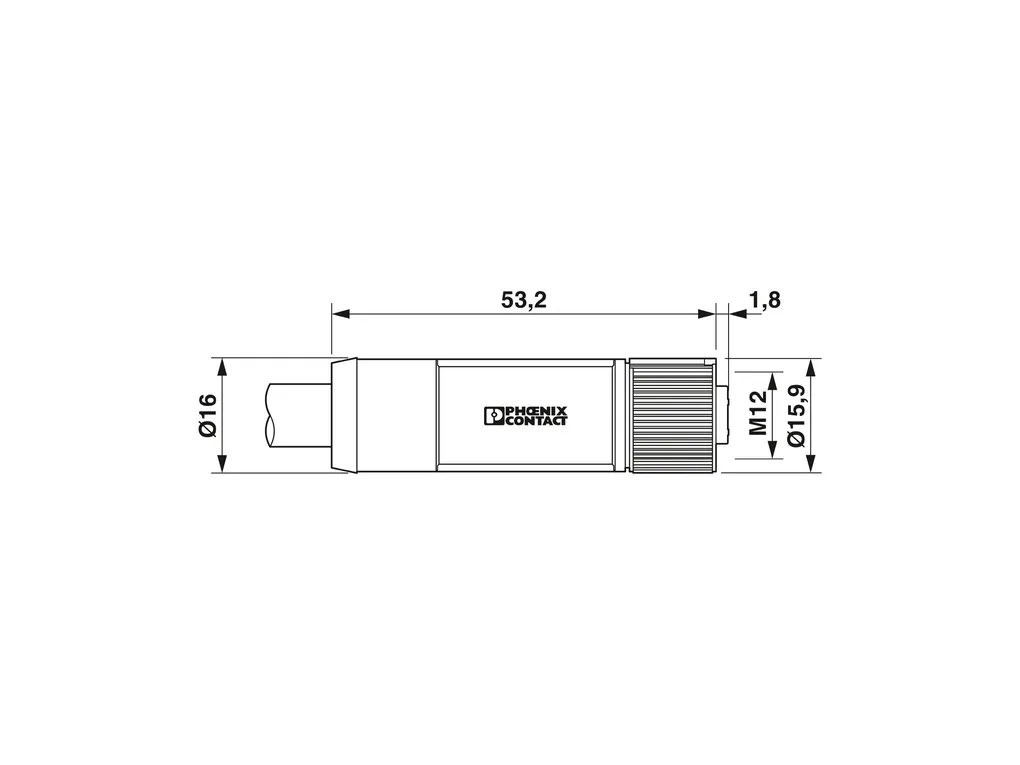

Cable/line | Cable length: 20 m PVC black[PVC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4ec2739db2b7a449beeded92db81a494/-S204x204-FJPG Cable weight: 80 kg/km UL AWM Style: 2517 (105°C / 300V) Number of positions: 3 Shielded: no Cable type: PVC black[PVC] Conductor cross section: 3x 1.5 mm² Wire diameter incl. insulation: 2.4 mm ±0.1mm External cable diameter: 6.8 mm ±0.2mm Outer sheath, material: PVC External sheath, color: black Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: black 1, black 2, green/yellow Overall twist: 3 wires, twisted Max. conductor resistance: ⤠13.3 é/km (at 20°C) Insulation resistance: ⥠10 Mé*km (at 20°C) Nominal voltage, cable: 300 VAC Test voltage: 2000 VAC Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 12 x D Flame resistance: according to IEC 60332-1 According to DINEN60332-1-2 According to VW-1 According to FT1 Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 90°C (Cable, flexible installation) |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 (without preloading, as additional test in accordance with IEC 60529) Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 |
