| Product properties | Type: D15 Product type: Connector set Number of positions: 10 Application: Standard No. of cable outlets: 1 Housing type: Complete housing Protective cover: yes Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated voltage (III/3): 250 V Rated surge voltage: 4 kV Rated current: 16 A |
| Connection data | Connection method: Push-in connection Connection technology: Push-in connection Conductor cross section: 0.14 mm² ... 2.5 mm² (applies to stranded conductors with ferrules) Connection cross section AWG: 26 ... 14 |

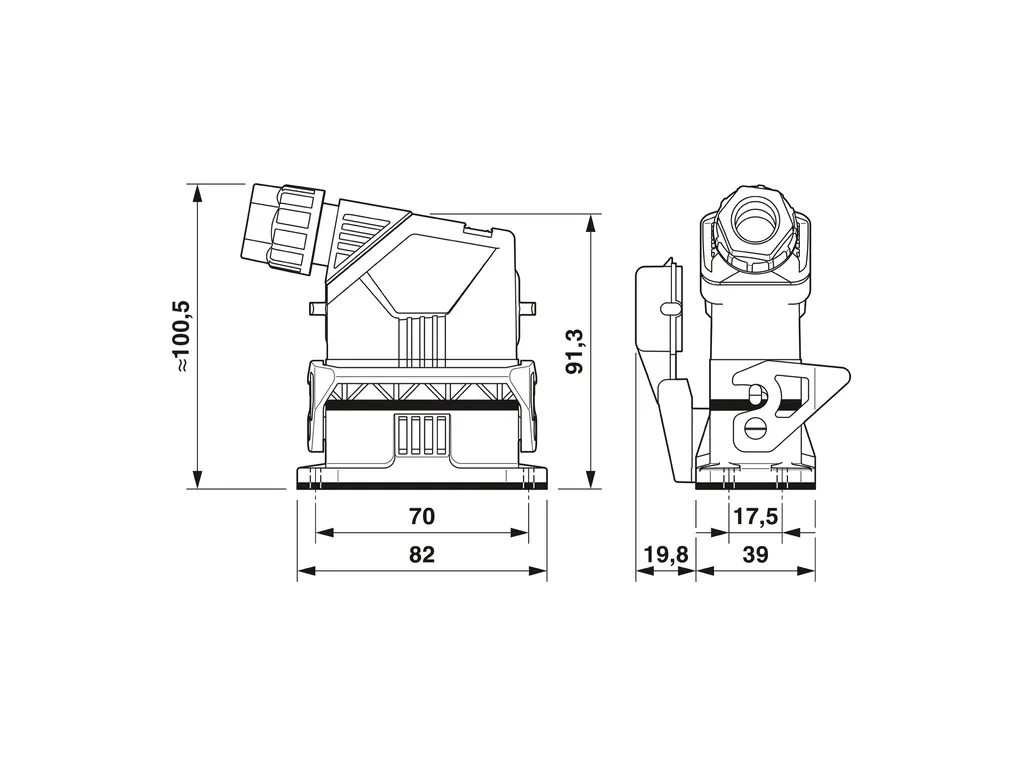

| Dimensions | Installation dimensions Width of the assembly cutout: 24 mm Length of the assembly cutout: 58 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Locking latch material: PA Impact strength: IK08 Housing material: PA |
| Cable/line | External cable diameter (): 7 mm ... 13 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (ULÃ50e) Impact strength: IK08 Ambient temperature (operation): -40°C ... 100°C |
| Mounting | Connection method: Push-in connection |
