Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BM-18 Shielded: no Execution of the strain relief: A |
Characteristics | Category of shock impact: 4 Design, Strain relief: A |

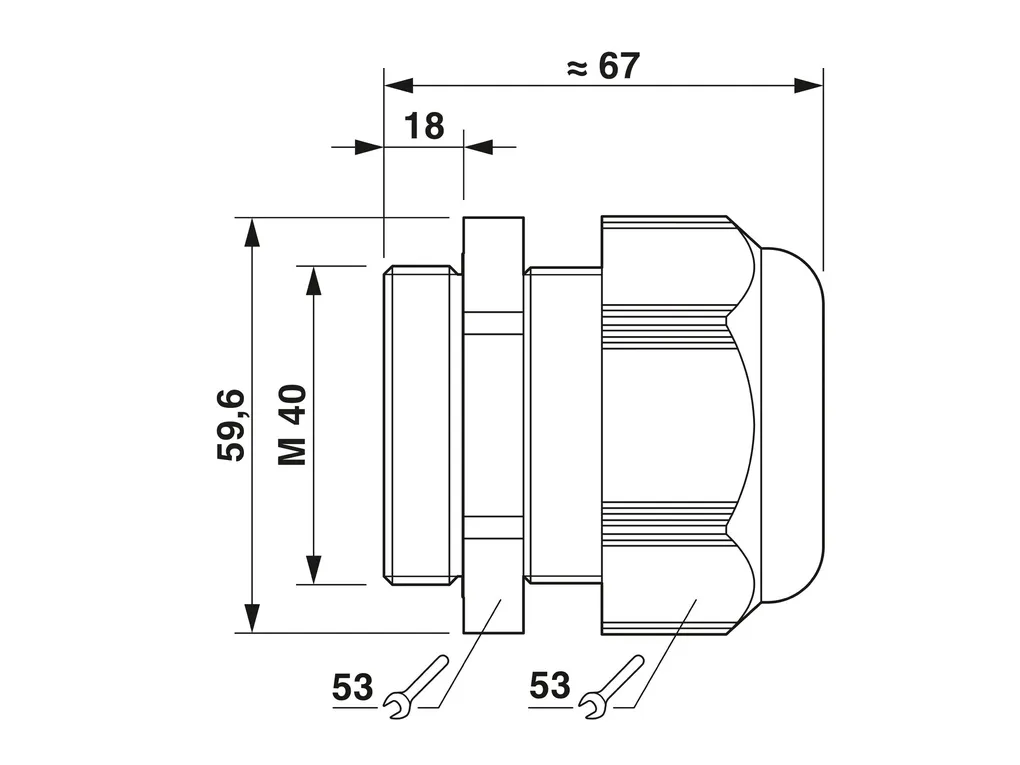

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/26e7a6ce766e554693fc0768004891cb/-S204x204-FJPG Length: 55 mm Length of the connecting thread: 18 mm Hole diameter: 40.1 mm ... 40.3 mm Wrench size, union nut: 53 mm Wrench size, support: 53 mm Hexagon angular dimension: 59.6 mm Thread type connection side: M40 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 20 Nm ±1.5Nm (Cap nut) 5 Nm (Support sleeve) |
Material specifications | Flammability rating according to UL 94: V2 Seal material Cable seal: CR Material for screw connection: PA |
Cable/line | External cable diameter (Cable 1): 22 mm ... 32 mm External cable diameter (): 22 mm ... 32 mm (for UL 514 B) |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5bar / 0.5h) Enclosure rating (NEMA): 1 4 4X 12 13 Ambient temperature (operation): -40°C ... 100°C (static) |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
