1424546 PHOENIX CONTACT - Technology Bsa

G-INS-M40-M68N-SNES-S - Cable gland

Cable gland, material for screw connection: Stainless steel 1.4305, external cable diameter 19 mm ... 28 mm, shielding: no, connecting thread: M40 x 1.5, color: silver, with O-ring

Product Code: 1424546 Copia - Copy

Partner cod.: 1424546 Copia - Copy

PHOENIX CONTACT

Mounting	Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque
Product properties	Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BMSC-E5 Shielded: no Execution of the strain relief: A
Characteristics	Category of shock impact: 4 Design, Strain relief: A

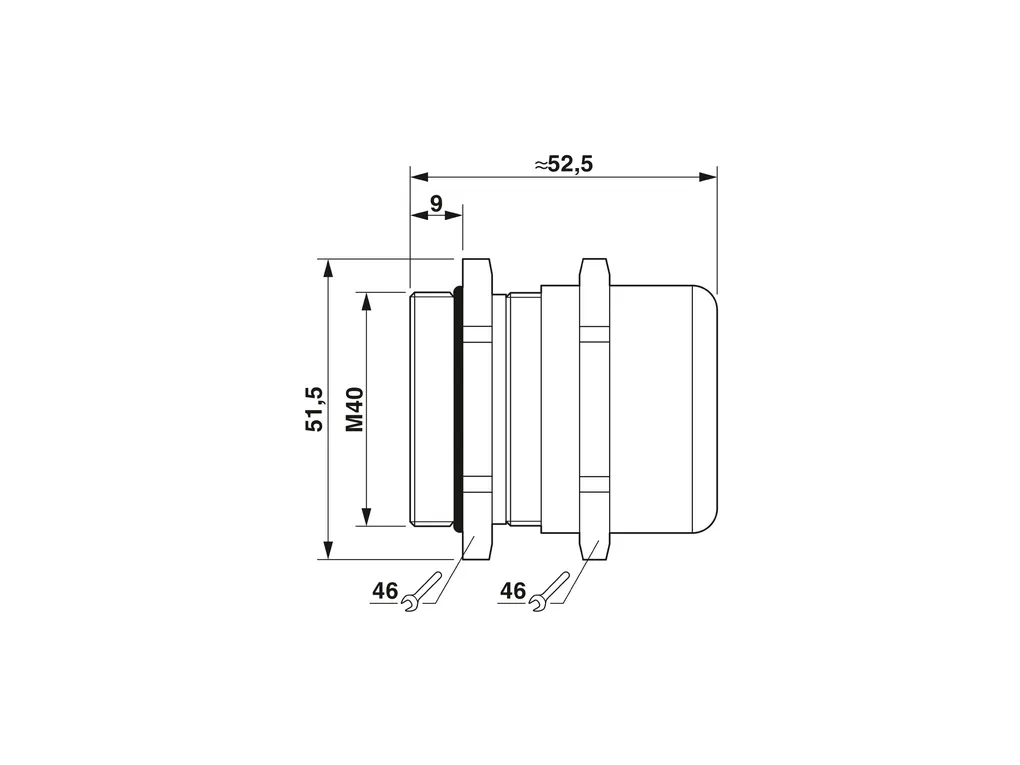

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a8243ce808103c4ea29caf920efe691f/-S204x204-FJPG Length: 52.5 mm Length of the connecting thread: 9 mm Hole diameter: 40.1 mm ... 40.3 mm Wrench size, union nut: 46 mm Wrench size, support: 46 mm Hexagon angular dimension: 51.5 mm Thread type connection side: M40 x 1.5 Thread pitch: 1.5 mm
Connection data	Tightening torque: 17 Nm (Cap nut) 12 Nm (Support sleeve) for UL514 B: union nut
Material specifications	Color: Steel / stainless steel Material: PA 6 Seal material O-ring: Perbunan Seal material Cable seal: CR Material for screw connection: Stainless steel 1.4305
Cable/line	External cable diameter (Cable 1): 19 mm ... 28 mm External cable diameter (): 21 mm ... 28 mm (for UL 514 B)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP68 (5Ãbar, 30Ãmin.) IP66 IP69 Ambient temperature (operation): -40°C ... 100°C (static)
