A-INL-PG11-P-BK - Counter nut
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Flat nut |

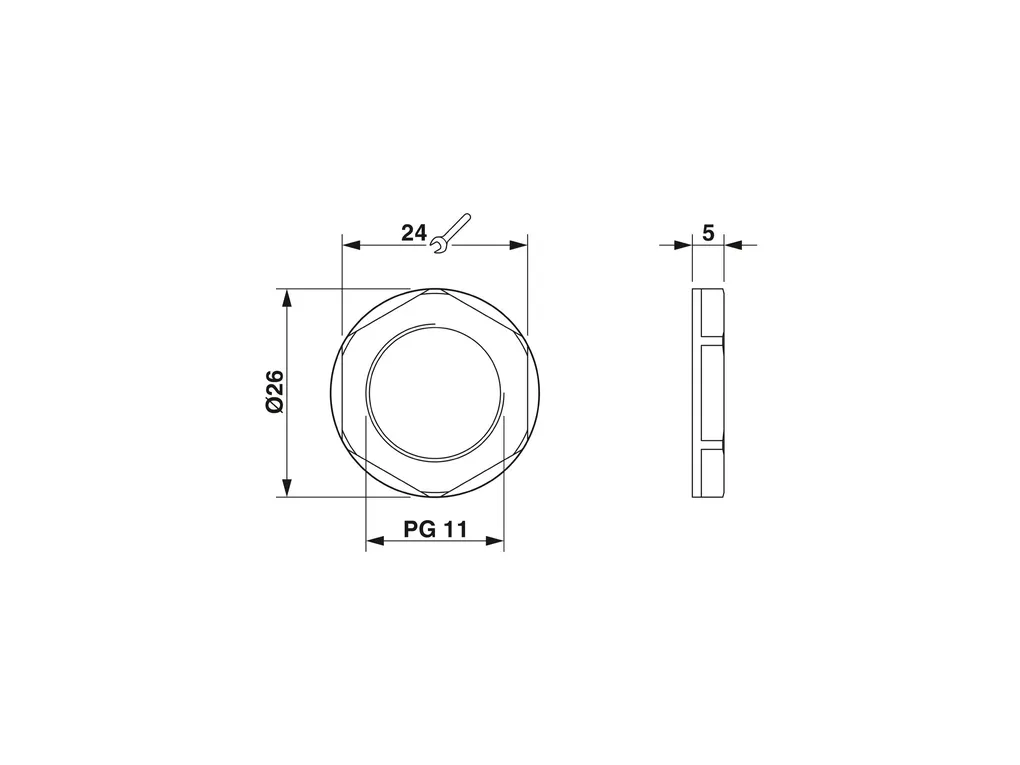

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fe3aa5f40a0f9a4f8f157bf9302887a2/-S204x204-FJPG Length: 5 mm Diameter: 18.6 mm Connecting thread diameter: 18.6 mm Wrench size, counter nut: 24 mm Hexagon angular dimension: 26 mm Thread type connection side: Pg11 |
Material specifications | Material: PA 6.6 GF Flammability rating according to UL 94: V2 |
Cable/line | Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 100°C |
ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
ETIM | ETIM 9.0: EC000940 |
UNSPSC | UNSPSC 21.0: 31161700 |
