1424583 PHOENIX CONTACT - Technology Bsa

MH-27-MULTI-65-PV-BK - Cable feed-through plates

Cable feed-through plates, no. of conductors: 27, external cable diameter: 26x 3 mm ... 6 mm, 1x 10 mm ... 20 mm, material: PP (Core), material: TPE-SEBS (external material), color: black, length: 154 mm, width: 56 mm, height: 18.5 mm

Product Code: 1424583

Partner cod.: 1424583

PHOENIX CONTACT

Notes	General: incl. mounting screws
Product properties	Product type: Cable feed-through No. of conductors: 27
Connection data	External cable diameter: 26x 3 mm ... 6 mm Tightening torque: 1.8 Nm

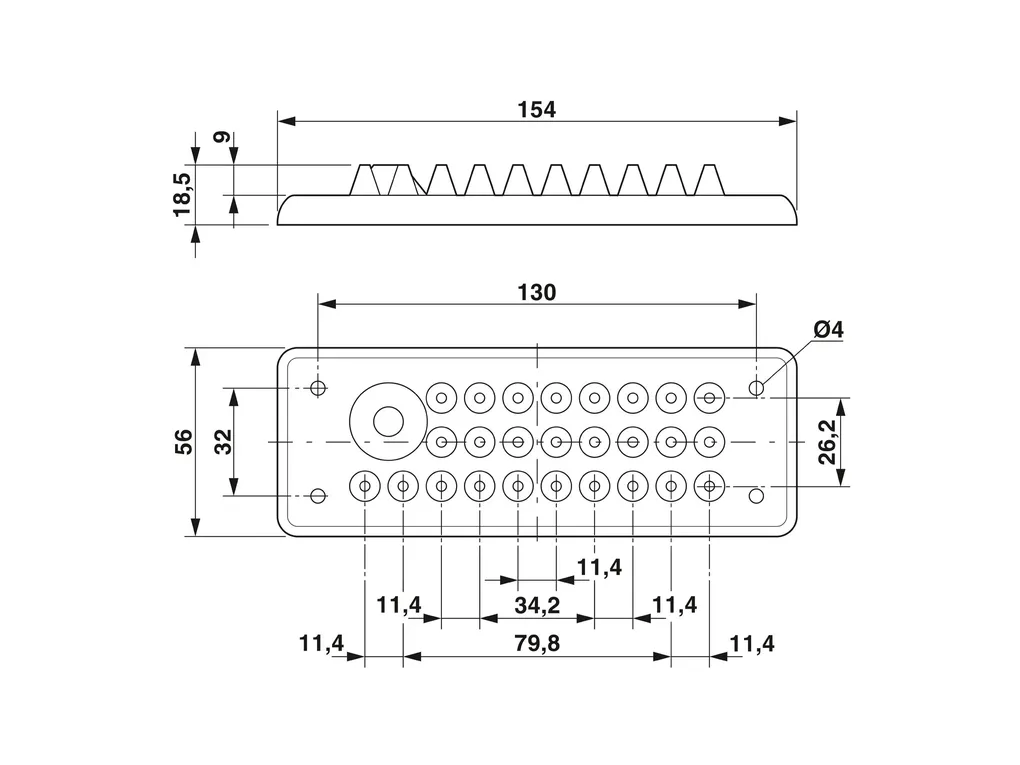

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/85d98ae554b633448371023030f8fe00/-S204x204-FJPG Width: 56 mm Height: 18.5 mm Length: 154 mm Drill hole distance, horizontal: 130 mm Drill hole distance, vertical: 32 mm Hole diameter: 4 mm
Material specifications	Material: PP TPE-SEBS Flammability rating according to UL 94: V0
Cable/line	External cable diameter (): 26x 3 mm ... 6 mm 1x 10 mm ... 20 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 90°C
Mounting	Assembly instructions: M4 mounting screw, torque: 1.8Nm, SW5 Allen key The mounting screws included should be used for assembly. Assembly steps: 1) Fix Multigates with the mounting screws provided (observe torque) 2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone 3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20mm (to improve strain relief).
