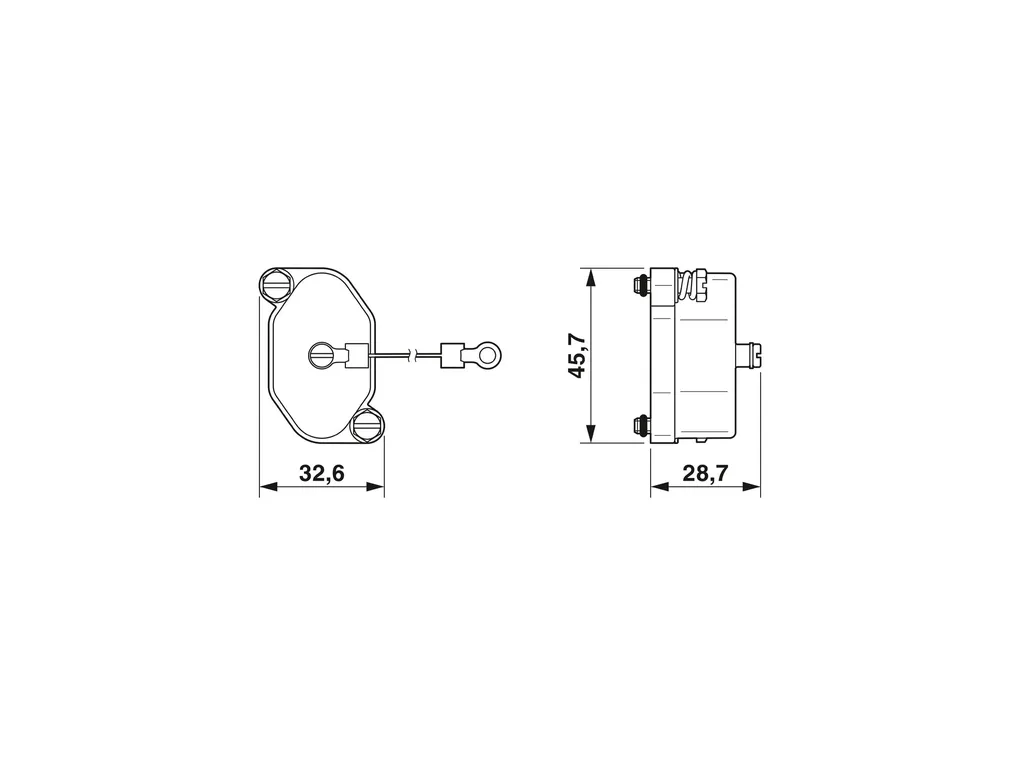

Notes | General: for contact insertsHC-D7, D8, A3, A4, HS2-D7,Q5, Q7, Q12 |
Product properties | Type: D7 Product type: Protective cover Application: Railway applications Housing type: Protective cover Series: HPR-D7 Shielded: yes Pg screw connection: none |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/54847574860611489edafd0e5aae493f/-S204x204-FJPG Width: 32.6 mm Height: 28.5 mm Length: 45.7 mm |
Material specifications | Material: Die-cast zinc Material, protective cover: Zinc Housing material: Zinc die-cast |
Mechanical properties | Mechanical data Locking type: Screw |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (with sealing screw) IP68 (0.4 bar / 30 min. with sealing screw) IP69 (ISO20653:2013-02) Ambient temperature (operation): -40°C ... 125°C |
Mounting | Assembly instructions: M4 locking screw, slotted hexagon head screw (wrench size 7), tightening torque: 1 Nm. The seal of the pin contact insert should be removed. Max. thread length of the screw connection: 6 mm Mount contact insert with sealing screw in the housing |
