HC-HPR-D07-BFH-EMR-BK - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)

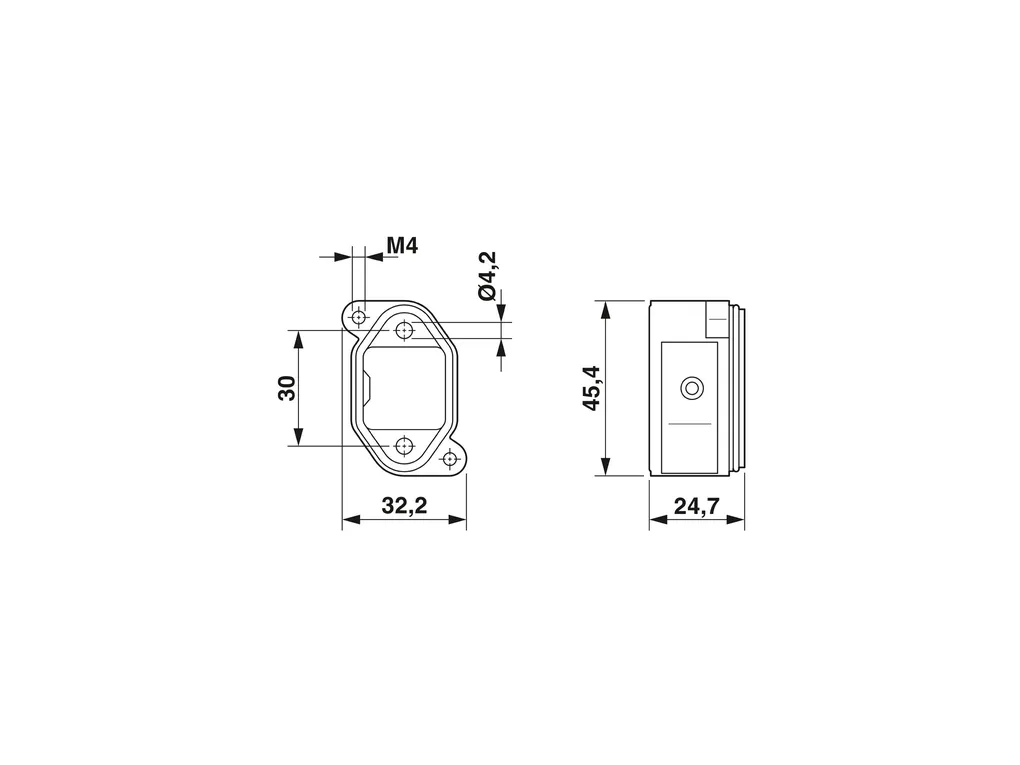

Notes | General: for contact insertsHC-D7, D8, A3, A4, HS2-D7,Q5, Q7, Q12 |
Product properties | Type: D7 Product type: Housing with screw locking Product family: HC-STA-D07 Application: Railway applications Housing type: Panel mounting base Protective cover: no Series: HPR-D7 Shielded: yes Pg screw connection: none |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/337f3431b91f134a8e24510909584d2f/-S204x204-FJPG Width: 32.2 mm Height: 24.3 mm Length: 45.4 mm Hole diameter: 4.2 mm Installation dimensions Width of the assembly cutout: 22 mm Length of the assembly cutout: 22 mm |
Material specifications | Seal material: NBR Housing surface material: Powder-coated, black Impact strength: IK09 Housing material: Zinc die-cast |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (with sealing screw) IP68 (0.4 bar / 30 min. with sealing screw) IP69 (ISO20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
Mechanical properties | Mechanical data Locking type: Nut |
Mounting | Assembly instructions: M4 locking screw, slotted hexagon head screw (wrench size 7), tightening torque: 1 Nm. The seal of the pin contact insert should be removed. Max. thread length of the screw connection: 6 mm Mount contact insert with sealing screw in the housing |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
