Product properties | Type: B48 Product type: Housing with locking latch Application: Standard Housing type: Panel mounting base Protective cover: yes Pg screw connection: none |

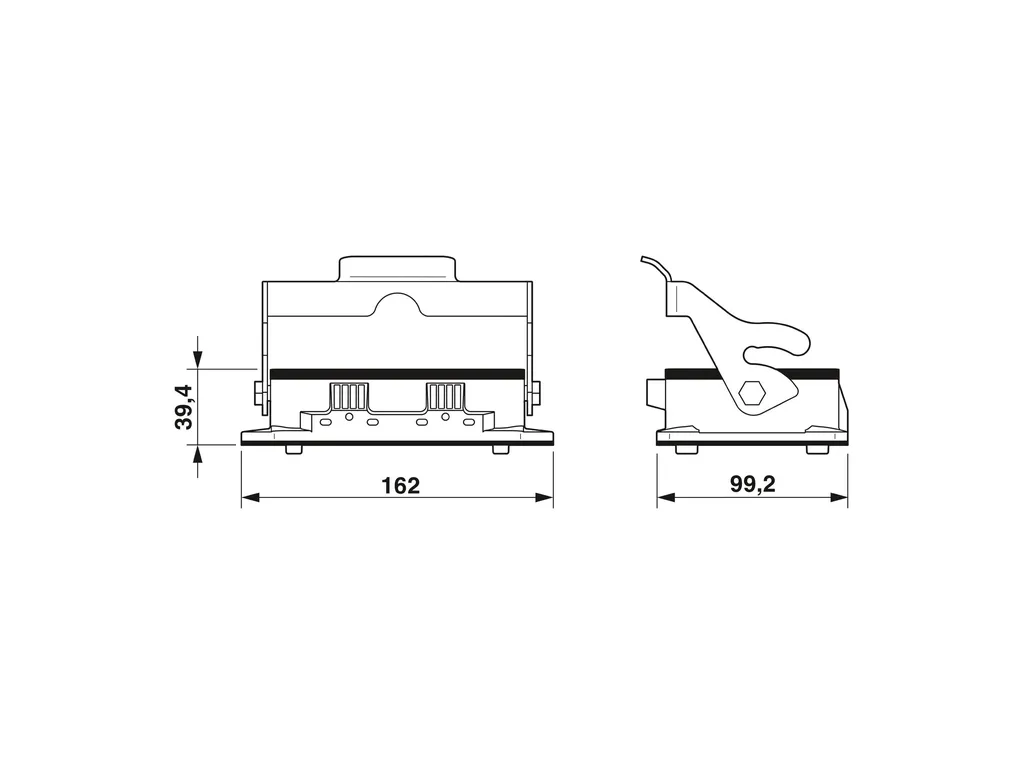

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/22902dadaa5a5648bf15b3eba3f7a10b/-S204x204-FJPG Width: 99.2 mm Height: 39.4 mm Length: 162 mm Drill hole distance, horizontal: 148 mm Drill hole distance, vertical: 70 mm Hole diameter: 6.5 mm Installation dimensions Width of the assembly cutout: 81 mm Length of the assembly cutout: 117 mm |
Material specifications | Flammability rating according to UL 94: V0 (Interlock) V0 (Protective cover) Seal material: NBR, conductive Housing surface material: uncoated Material, protective cover: PA Locking latch material: Stainless steel Impact strength: IK08 Housing material: Die-cast aluminum, salt water resistant |
Mechanical properties | Mechanical data Locking type: Latch |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (with locked protective cover) IP67 (when plugged in) Enclosure rating (NEMA): 4 (UL50e) 4X (UL50e) 12 (UL50e) Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
