Industrial Automation
SI-RND-R1A - Data interface
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Data front plate Number of positions: 8 Connection profile: RJ45 |

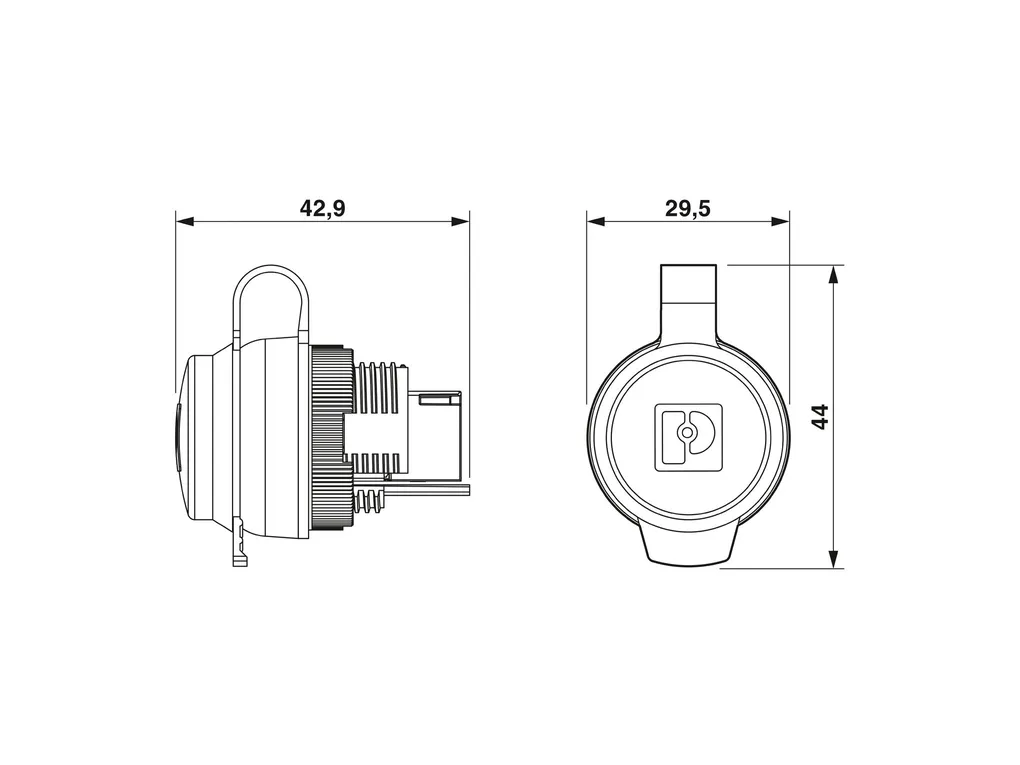

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/289bd58a7f30274fba51018c1f3cfb9e/-S204x204-FJPG Width: 29.5 mm Height: 42.7 mm |
Material specifications | Material: PA Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: gold-plated |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠750 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 (with closed protective cover) Ambient temperature (operation): -40°C ... 70°C |
Mounting | Assembly instructions: Panel thickness: 1 mm ... 3 mm Panel thickness: 1 mm ... 3 mm |
ECLASS | ECLASS-11.0: 27182806 ECLASS-12.0: 27182806 ECLASS-13.0: 27182806 |
ETIM | ETIM 9.0: EC000456 |
UNSPSC | UNSPSC 21.0: 39121300 |
