| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. |
| Mounting | Connection method: Insulation displacement connection |
| Product properties | Product type: Circular connector (cable-side) Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: straight Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

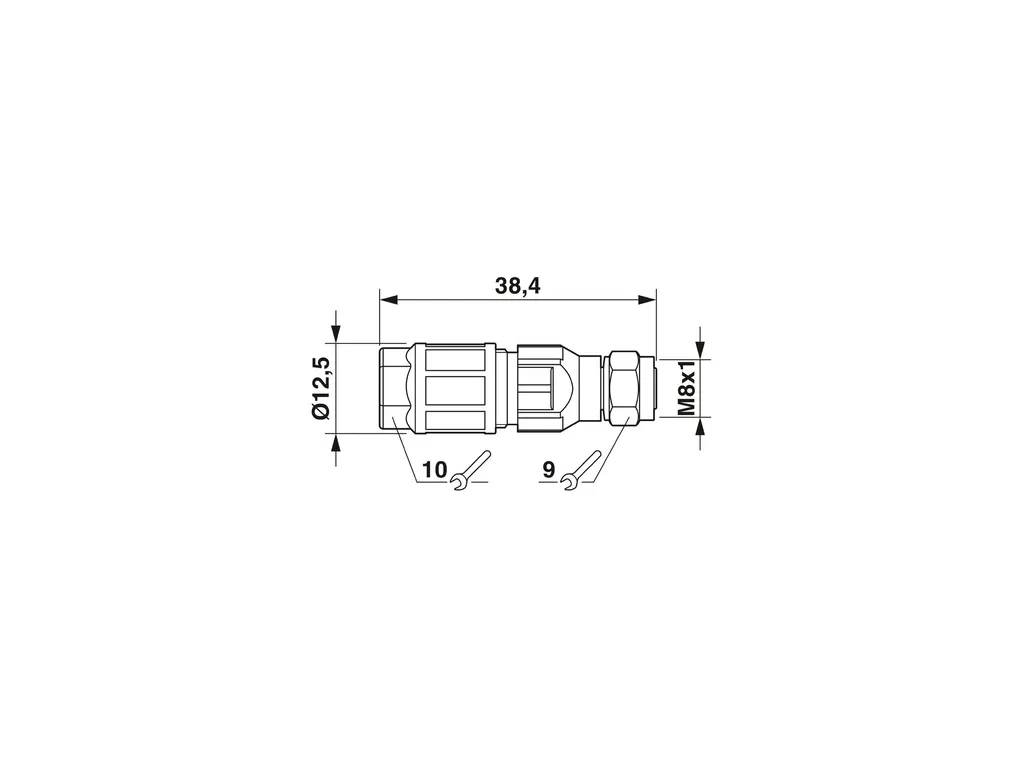

| Dimensions | External dimensions Outside diameter: 2.5 mm ... 5 mm ±0.2mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: PA 6 Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Stainless steel 1.4305 Wire insulation material: PVC / PE / PP / rubber |
| Connection data | Conductor connection Connection method: Insulation displacement connection Connection cross section: 0.25 mm² ... 0.5 mm² Connection cross section AWG: 24 ... 20 Tightening torque: 0.6 Nm (Pressure nut) 0.2 Nm (M8 knurl) |
| Electrical properties | Contact resistance: ⤠5 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 30 VAC 30 VDC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M8 Coding: A |
| Cable/line | External cable diameter (): 2.5 mm ... 5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP69K Ambient temperature (operation): -25°C ... 80°C (Plug / socket) |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 9.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
