PHOENIX CONTACT 1436945
PHOENIX CONTACTNot available

SACC-M 8-SET/2,2-3,5 - Connector

Sensor/actuator connector, accessories, pressure screw and seal, for unshielded M8 connector, cable diameter 2.2 mm - 3.5 mm
Product Code: 1436945
Partner cod.: 1436945
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesProduct type: Seal
No. of cable outlets: 1
Shielded: no

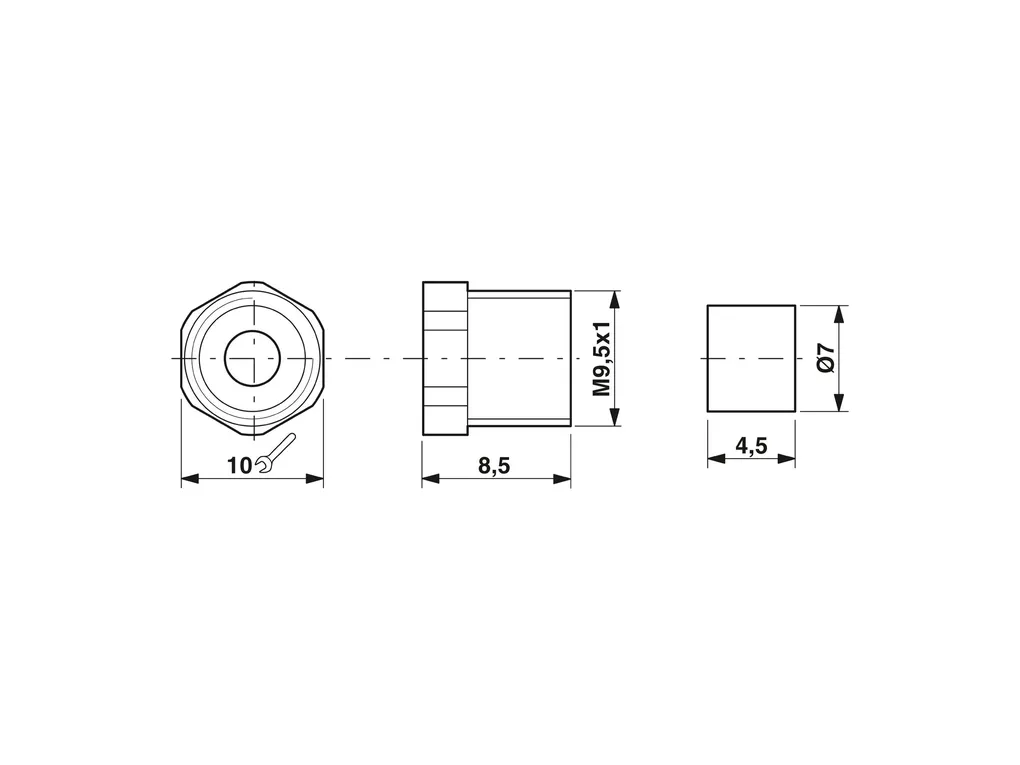

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8fafe4f2d6656c4f86220d0c0ee74c72/-S204x204-FJPG
Length: 8.5 mm
External dimensions
Outside diameter: 2.2 mm ... 3.5 mm
Housing
Diameter housing: 12 mm
Material specificationsMaterial: PA 6.6
Flammability rating according to UL 94: V0
Seal material: Neoprene
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -40°C ... 85°C
Technical Specs
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05520.pdf

Technical_drawing_15570.pdf
