PHOENIX CONTACT 1437067

Not available

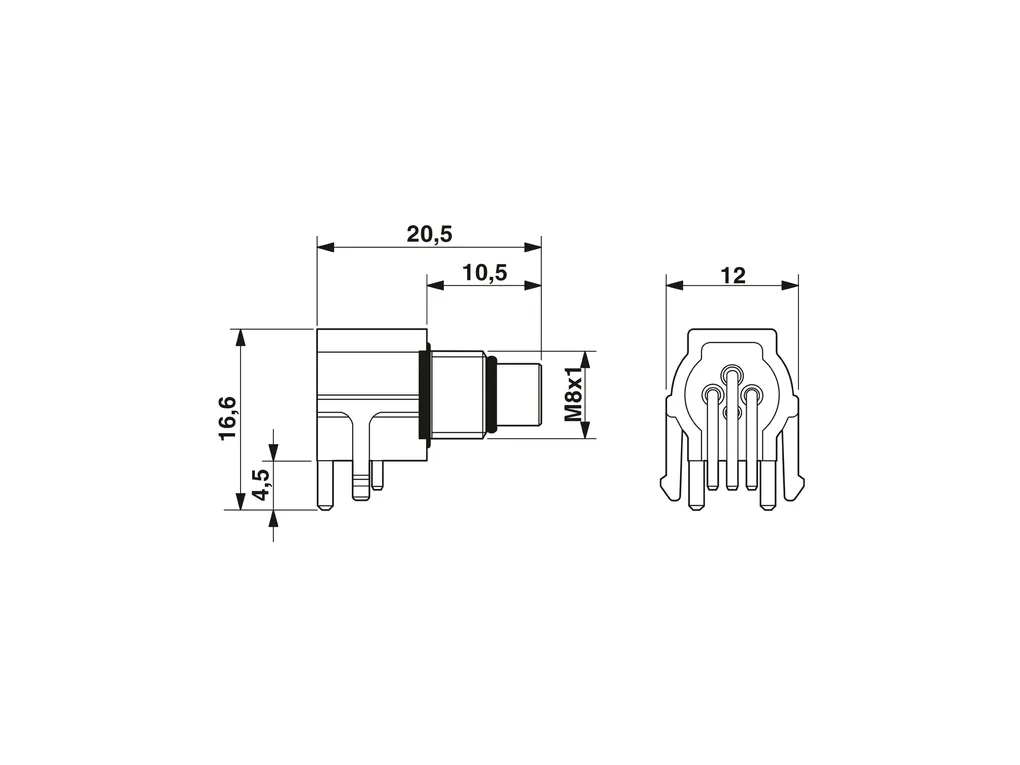

SACC-CI-M 8FS-3CON-L90 - Contact carrier

Contact carrier, 3-position, Socket, angled, M8, coding: A, PCB mounting, Solder pins

Product Code: 1437067

Partner cod.: 1437067

PHOENIX CONTACT

Tecnichal data

Technical Specs

Description

Download

Tecnichal data

Product properties	Product type: Contact insert Number of positions: 3 Shielded: no Coding: A Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Contact resistance: Ã¢¤ 3 mÃ© Insulation resistance: Ã¢¥ 100 MÃ© Nominal voltage U_N: 60 V Nominal current I_N: 4 A
Signaling	Status display: No Status display present: No
Material specifications	Flammability rating according to UL 94: HB Contact material: CuSn Contact surface material: Au Contact carrier material: PA 6.6
Connector	Connection 1 Head design: Socket Head cable outlet: angled Head thread type: M8 Coding: A
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 85°C
Mounting	Mounting type: PCB mounting Connection method: Solder pins

Technical Specs

ECLASS	ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116
ETIM	ETIM 9.0: EC002635
UNSPSC	UNSPSC 21.0: 39121400

Description

Sensor/actuator flush-type connector, socket, 3-pos., M8, with angled solder connection, only contact insert

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_08609.pdf
