SACB-4/ 4-L-C GG SCO P - Sensor/actuator box header

Sensor/actuator box header, application: Standard, connection method: M12-SPEEDCON-socket Plastic, number of slots: 4, number of positions: 4, coding: A, slot assignment: single, status display: Yes, pnp; master cable connection: Pluggable screw connection, shielding: no
Product Code: 1452864
Partner cod.: 1452864
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
NotesGeneral: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties.
Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product propertiesProduct type: Header with metric measurement slots
Number of positions: 4
Application: Standard
Number of slots: 4
Coding: A
LED: yes
System propertiesLocal diagnostics
Monitored function: Supply voltage
Optical representation: Green LED
Electrical propertiesMax. operating voltage Umax: 30 VDC
Local diagnostics: Supply voltage Green LED
Status display I/O Yellow LED
Nominal voltage UN: 24 VDC
Rated current, total: 10 A
Max. current carrying capacity per path: 2 A
Current carrying capacity per slot: 4 A
SignalingStatus display present: Yes

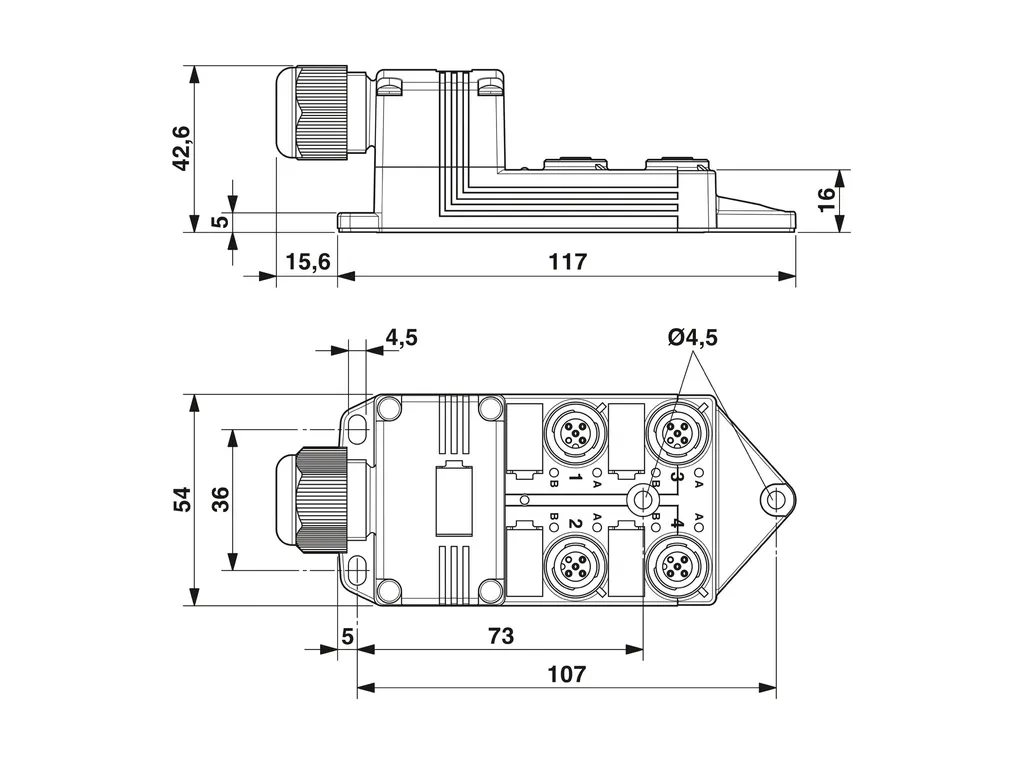

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/323be259cc14244db16f61141d96055a/-S204x204-FJPG
Width: 54 mm
Height: 19 mm
Length: 117 mm
Material specificationsMaterial: PBT
PUR
Flammability rating according to UL 94: V0
Seal material O-ring: NBR
Contact material: Cu alloy
Contact surface material: gold-plated
Contact carrier material: PA
Material of contact, master cable side: CU alloy
Material of the contact carrier on the master cable side: PA
Material of contact surface, master cable side: Sn
Cable/lineSensor/actuator connection system: M12-SPEEDCON-socket
Connection method: Pluggable screw connection
Tightening torque of mounting screw for fixing the housing: 0.5 Nm
Tightening torque slot sensor/actuator cable: 0.4 Nm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP65
IP67
Ambient temperature (operation): -25°C ... 80°C
Standards and regulationsStandard designation: M12 connector
Standards/specifications: IEC 61076-2-101
Technical Specs
ECLASSECLASS-11.0: 27440111
ECLASS-12.0: 27440111
ECLASS-13.0: 27440111
ETIMETIM 9.0: EC003558
UNSPSCUNSPSC 21.0: 31251500
Description
Sensor/actuator box header, application: Standard, connection method: M12-SPEEDCON-socket Plastic, number of slots: 4, number of positions: 4, coding: A - standard, slot assignment: single, status display: yes, pnp; master cable connection: Pluggable screw connection, shielding: no
