| Notes | General: For details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204) NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. |
| Product properties | Product type: Connector hood Application: Sensor/actuator box Number of slots: 8 Coding: A LED: No |
| Electrical properties | Nominal voltage UN: 120 VAC 120 VDC Rated current, total: 10 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A |
| Signaling | Status display present: No |

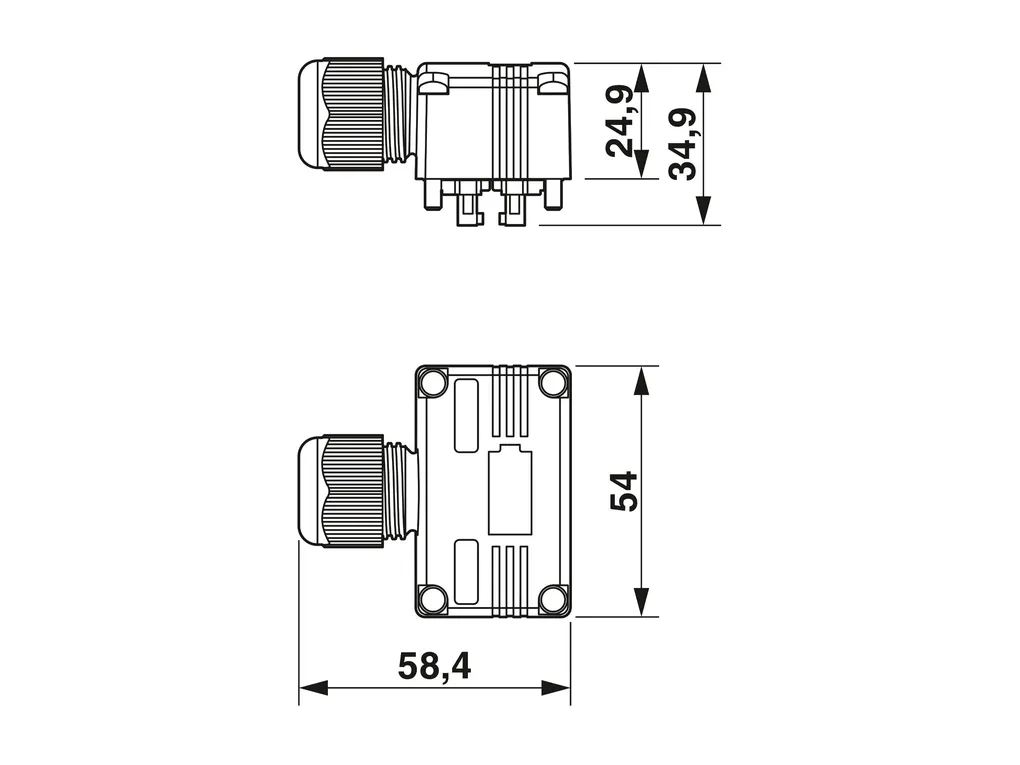

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/5b63d1f2628bda408d2cff1be5a61930/-S204x204-FJPG Width: 54 mm Height: 25 mm Length: 34 mm |
| Material specifications | Material: PBT Flammability rating according to UL 94: V0 Seal material: NBR Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: Sn |
| Cable/line | Sensor/actuator connection system: M12-SPEEDCON-socket Connection method: Pluggable screw connection External cable diameter: 7 mm ... 12 mm Stripping length (signal): 7 mm Stripping length for sheath: 50 mm (Master cable) Tightening torque, cover screw: 1 Nm Tightening torque, union nut: 2.5 Nm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 80°C |
| ECLASS | ECLASS-11.0: 27440111 ECLASS-12.0: 27440111 ECLASS-13.0: 27440111 |
| ETIM | ETIM 9.0: EC003558 |
| UNSPSC | UNSPSC 21.0: 31251500 |
